APC NetShelter Basic Rack PDU | 1U | 230V/16A Input

Product details

Compare the input supply, outlet types and mounting or placement requirements.

Quick comparison

• Voltage: 230V
• 1U
• 230V/16A Input
• 12x IEC C13 Outlets
• Product SKU: UPAPCAP9565

Before you order

Confirm electrical ratings and the total connected load. Check plug, outlet and installation compatibility with your equipment.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

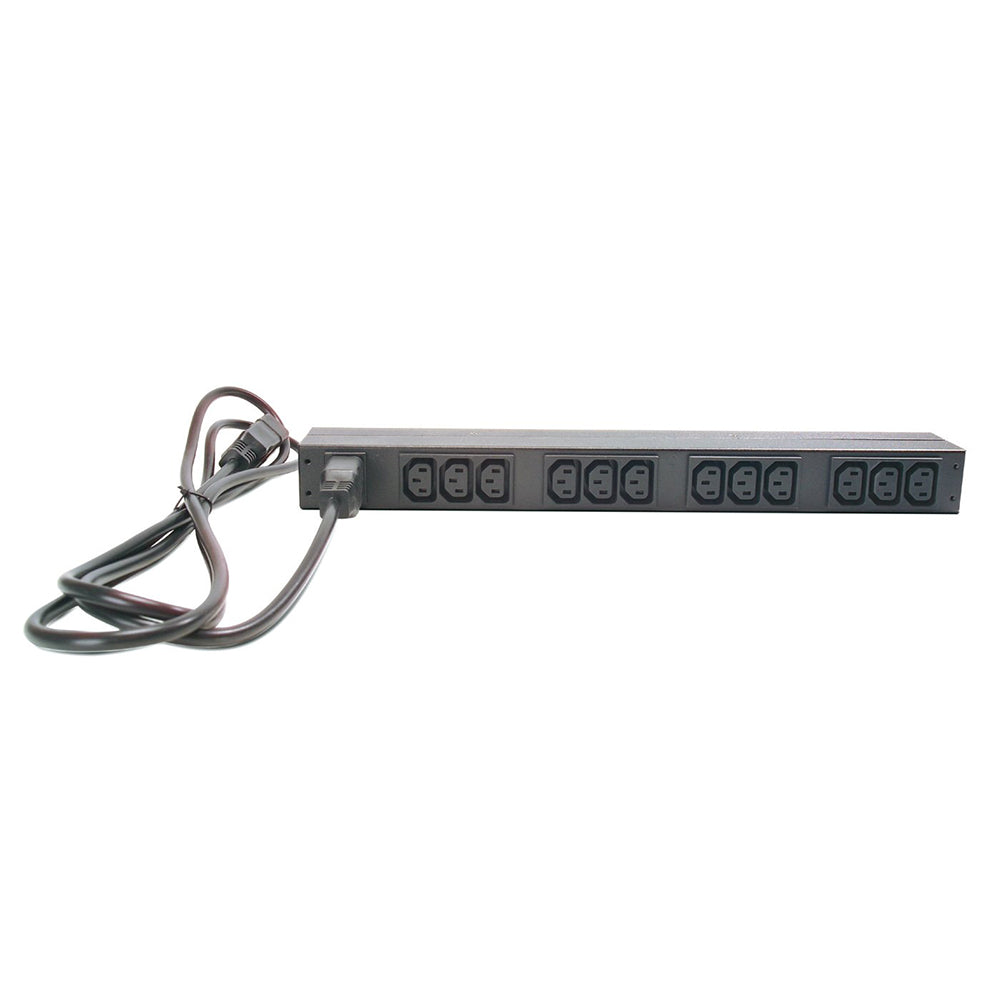

APC NetShelter Basic Rack PDU

• 1U
• 1PH
• 3.7kW 230V 16A or 3.3kW 208V 16A
• x12 C13 outlets
• C20 cord Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment. Colour Black PDU type Basic Cord length 2.50 m Number of cables 1 Provided equipment- Installation guide
• Rack mounting brackets Input Voltage 200 V
• 208 V
• 230 V Input Plug Type IEC 60320 C20 Rack units 1U Mounting position Horizontal Input current limits 16 A Load capacity 3680 VA Network frequency 50/60 Hz Total number of outlets 12 IEC 60320 C13 Product certifications- CUL listed
• CE
• Queensland Australia
• UL listed
• VDE Standards UL 60950 Ambient air temperature for operation 0…45 °C Relative humidity 0…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 0…95 % Storage altitude 0.00…15240.00 m Mounting mode- Rack mounted Compatible PDU- AP9569
