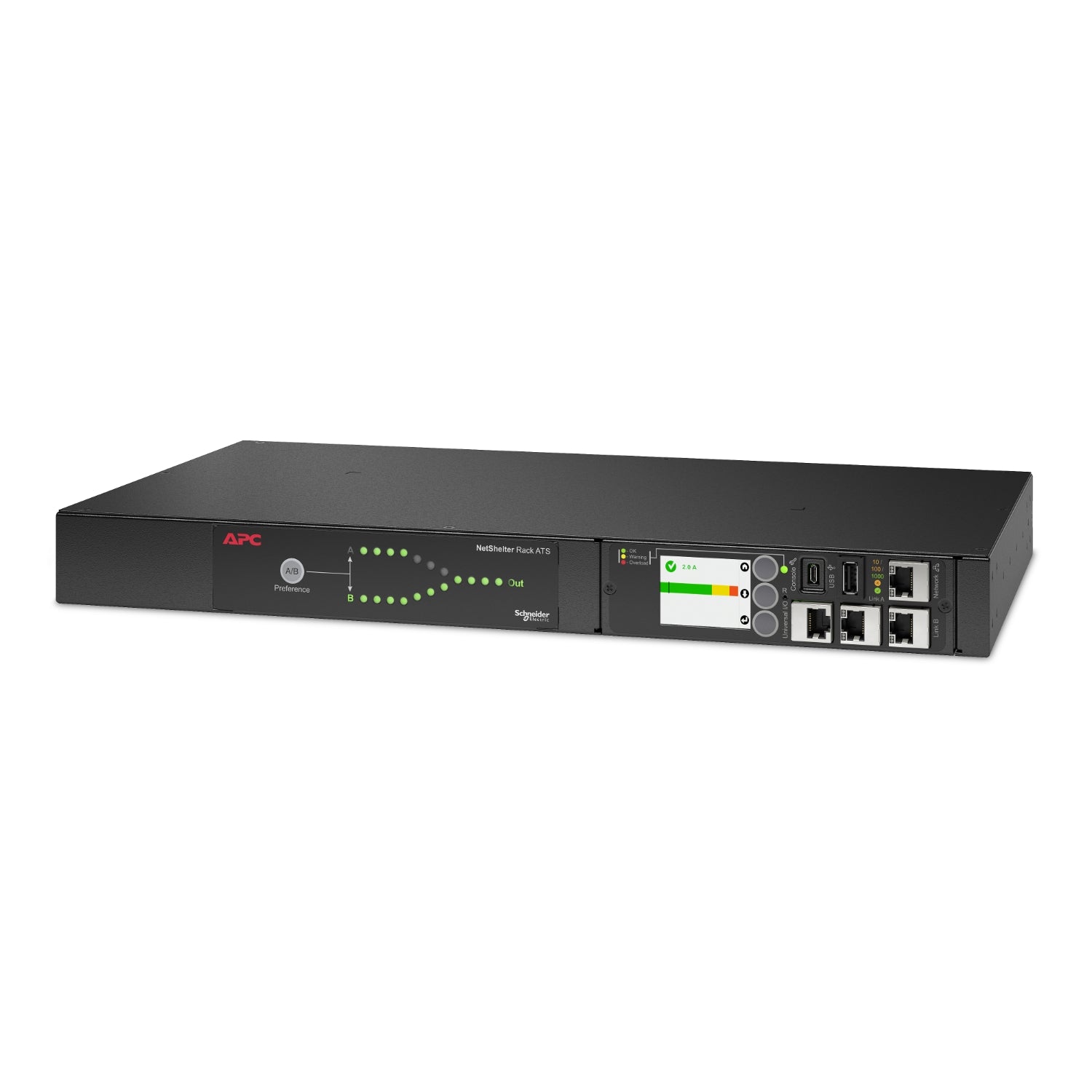

APC Netshelter Automatic Transfer Switch, 1U RM, 2x 230V/10A Input, 12x IEC C13 Output

Product details

APC Netshelter Rack Automatic Transfer Switch

• 1U
• 10A
• 230V
• C14 IN
• 12 C13 OUT
• 50/60Hz APC NetShelter Rack Automatic Transfer Switch (ATS) AP4421A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability
• agility
• and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4421A is single phase 1U Rack ATS with 10A rated current
• 230V rated voltage and 2000VA load capacity. It comes with 2 IEC C14 inlet and 12 IEC C13 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing
• environmental monitoring and enhanced security. Main Input Voltage 230 V AC 1 phase Product or component type Automatic transfer switch Main Output Voltage 230 V AC 1 phase Input Connection Type IEC 60320 C14 10 A 2P + E Number of rack unit 1U Provided equipment- Mounting hardware
• Rack mounting brackets Network frequency 50/60 Hz [In] rated current 10 A Permissible voltage 207…253 V Max line current 10 A Load capacity 2000 VA Number of power socket outlets 12 IEC 60320 C13 10 A 2P + E Number of power socket outlets 12 Protection type Without circuit breaker Product certifications EN 55022 class A FCC part 15 class A Standards EN 55022 class A
• FCC part 15 class A Ambient air temperature for operation -5…45 °C Relative humidity 5…95 % Operating altitude 0...10000 ft Ambient air temperature for storage -25…65 °C Storage Relative Humidity 5…95 % Storage altitude 0…15240 m Mounting mode- Rack mounted Compatible Sensors- AP9335T
