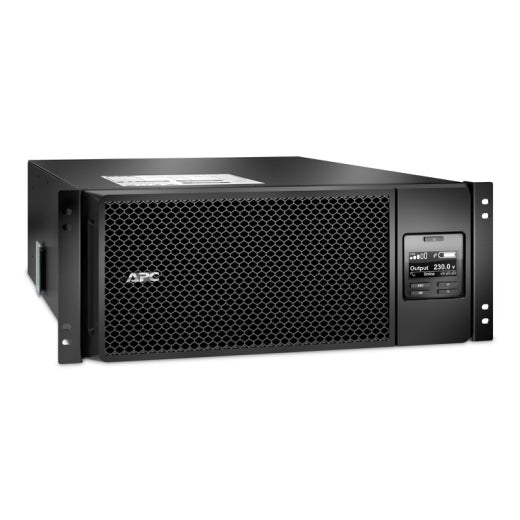

APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
Product details
Review the product details and listed configuration to match this item to your business requirements.
Quick comparison
- 6kVA/6kW
- Rackmount 4U
- 230V
- 6x C13+4x C19 IEC outlets
- Product SKU: UPA-SRT6KRMXLI
Before you order
Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
APC Smart-UPS On-Line, 6kVA/6kW, Rackmount 4U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 6000VA/6000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Main Input Voltage- 230 V
Other Input Voltage- 220 V, 240 V
Main Output Voltage 230 V
Other Output Voltage- 220 V, 240 V
Rated power in W 6000 W
Rated power in VA 6000 VA
Output connection type 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Output connector type Hard wire 3-wire (H N + E) 1
Number of rack unit 4U
Provided equipment- CD with software, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Range of product Smart-UPS On-Line
Network frequency 40...70 Hz auto-sensing
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Input voltage limits 100...275 V adjustable (half load)
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 55 dBA
Heat dissipation 1300 Btu/h
IP degree of protection IP20
Compatible Batteries- SRT192RMBP
Compatible Wireless Communication Adapter- AP9834
