APC NetShelter Metered Rack PDU | 2U | 1PH

Product details

Compare the input supply, outlet types and mounting or placement requirements.

Quick comparison

• Power rating: 7.4kW
• Voltage: 230V
• Product SKU: UPA-AP7822B

Before you order

Confirm electrical ratings and the total connected load. Check plug, outlet and installation compatibility with your equipment.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

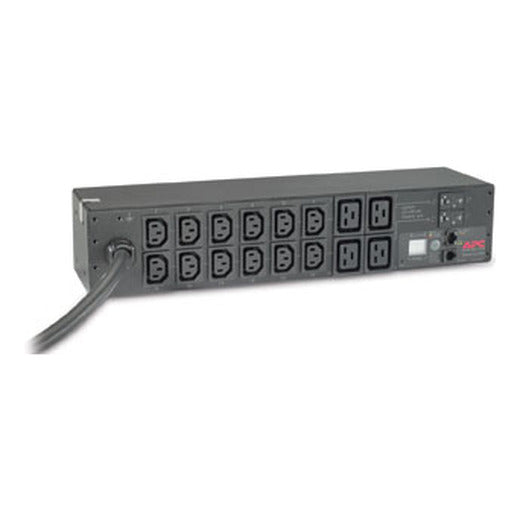

APC NetShelter Metered Rack PDU, 2U, 1PH, 7.4kW 230V 32A, x12 C13 and x4 C19 outlets, IEC 309 cord

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface.

Product or component type PDU

PDU type Metered

Cord length 3.7 m

Number of cables 1

Provided equipment- Cord retention bracket(s), Installation guide, Rack mounting brackets, User manual

Input Voltage 200 V, 208 V, 230 V

Output Voltage 230 V

Product certifications C-Tick, CE, GOST, IRAM, MIC, VDE, VCCI

Standards FCC part 15 class A ICES-003

Ambient air temperature for operation -5…45 °C

Relative humidity 5…95 %

Operating altitude 0...10000 ft

Ambient air temperature for storage -25…65 °C

Storage Relative Humidity 5…95 %

Storage altitude 0.0000000000…15240.0000000000 m
