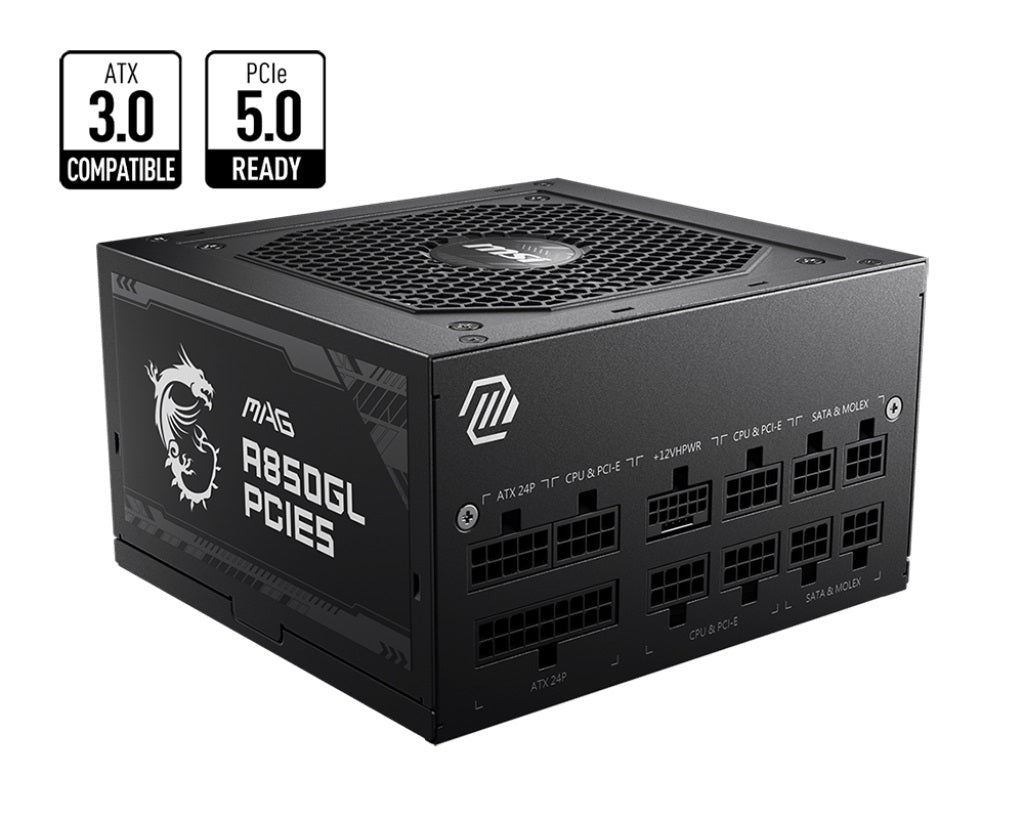

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

$157.00 ex GST
Skip to product information
MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD
  • MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD
  • MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD
MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD

$157.00 ex GST
In stock

Need volume-based pricing? Contact us

Product details

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD FEATURES: ATX 3.0 compatible, native PCIe 5.0 connector Supports NVIDIA® GeForce RTX™ 40 Series graphics cards Full modular design,Flat cables 80 Plus Gold certified for high efficiency Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP 120mm Fluid Dynamic Bearing Fan LLC Full Bridge Topology with DC-DC module design SPECIFICATIONS: EFFICIENCY RATING 80 PLUS Gold (up to 90%) MODULAR Yes (full modular) FAN SIZE 120 mm FAN BEARING Fluid Dynamic Bearing DIMENSIONS (DXWXH) 140 x 150 x 86 mm PFC TYPE Active PFC INPUT VOLTAGE RANGE 100~240 VAC POWER WATT 850W POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs) INPUT FREQUENCY RANGE 47-63Hz PROTECTION OCP / OVP / OPP / OTP / SCP / UVP ATX (24 PIN) 1 EPS (4+4 PIN) 2 PCI-E 5.0 (16 PIN) 1 (600W) PCI-E (6+2 PIN) 4 SATA (15 PIN) 8 MOLEX (4 PIN) 4 FDD (4 PIN) 1

Product Details

MSI MAG A850GL PCIE5 850W Up to 90% (80 Plus Gold) ATX Power Supply Unit, PFC, 100~240 VAC, 850W, 47-63Hz, PCI-E, SATA, FDD FEATURES: ATX 3.0 compatible, native PCIe 5.0 connector Supports NVIDIA® GeForce RTX™ 40 Series graphics cards Full modular design,Flat cables 80 Plus Gold certified for high efficiency Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP 120mm Fluid Dynamic Bearing Fan LLC Full Bridge Topology with DC-DC module design SPECIFICATIONS: EFFICIENCY RATING 80 PLUS Gold (up to 90%) MODULAR Yes (full modular) FAN SIZE 120 mm FAN BEARING Fluid Dynamic Bearing DIMENSIONS (DXWXH) 140 x 150 x 86 mm PFC TYPE Active PFC INPUT VOLTAGE RANGE 100~240 VAC POWER WATT 850W POWER EXCURSION 1700W (*up to 200% of the PSU's rated power for 100μs) INPUT FREQUENCY RANGE 47-63Hz PROTECTION OCP / OVP / OPP / OTP / SCP / UVP ATX (24 PIN) 1 EPS (4+4 PIN) 2 PCI-E 5.0 (16 PIN) 1 (600W) PCI-E (6+2 PIN) 4 SATA (15 PIN) 8 MOLEX (4 PIN) 4 FDD (4 PIN) 1
