Alloy SCR460SC-2 RS-232/422/485 Serial Terminal to Multimode Fibre Converter. Max. range 2 Km

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: Alloy SCR460SC-2 RS-232/422/485 Serial Terminal to Multimode Fibre Converter. Max. range 2 Km
• Product SKU: NHA-SCR460SC-2

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

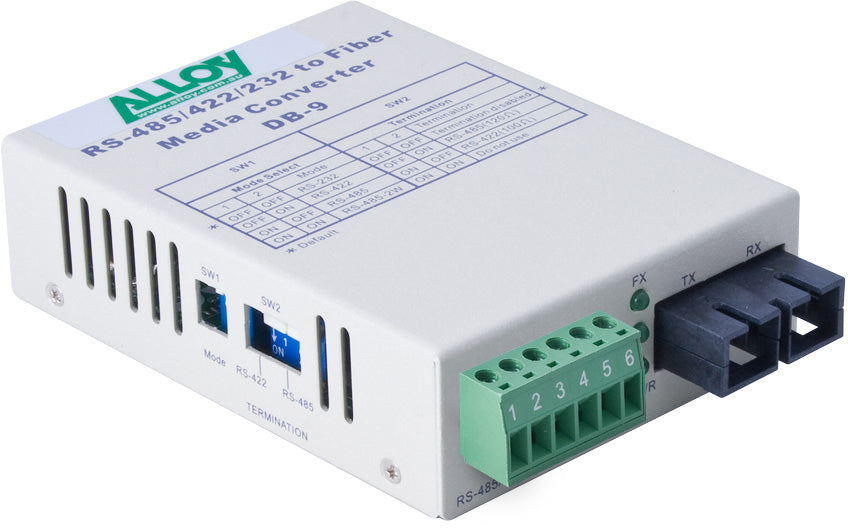

Alloy SCR460SC-2 Serial to Fibre Standalone/Rack Converter The SCR460SC-2

• an SCR Series Media Converter
• is used standalone or installed in a DCR12 Series Converter Chassis. This RS232/422/485 Serial to Fibre Converter has a Terminal Black and a SC terminated multimode fibre port with a range of up to 2Km. The SCR460SC-2 is a dual purpose Serial over Fibre Media Converter. It can be used as a standalone device
• or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Rackmount Chassis. The SCR460SC-2 has one triple mode circuit RS-232/RS-422/RS-485 Serial Terminal Block (primarily used to support RS-422 and RS-485 cables) and an SC terminated multimode fibre port
• enabling the Converter to extend data and control signaling over a fibre cable segment up to a maximum range of 2 kilometres. With auto baud rate (up to 460.8K) and direction control functions
• the Converter automatically detects serial signal characteristics to operate automatically in RS-232
• RS-422 or RS-485 mode. Features: SCR460SC-2 Converter: RS-232/422/485 serial (Terminal Block) to serial over multimode fibre (SC) - 2Km range SCR Series Converters for all types of serial over fibre media conversion - up to 20Km range DB-9 or Terminal Block options for copper serial cabling
• ST or SC fibre connectors Triple mode circuit support for Plug-and-play RS-232triple mode circuit RS-232/RS-422/RS-485
• RS-422 or RS-485 Auto baud rate (up to 460.8K) and Direction Control functions High EMI and EMS immunity Dual Purpose ACR Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis Easy 'Slide-in
• Hot Swap' installation into DCR12 Media Converter Chassis systems Compact
• rugged all-metal case
