Belkin Cat6 Network Cables (10M) - Blue (A3L980bt10MBLUS), Exceeds 500MHz In Performance Test, Snagless Prevents Breaking Cracking

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Exceeds 500MHz In Performance Test
• Snagless Prevents Breaking Cracking
• 2 Years Warranty
• Product SKU: MPA-BK-CAT6N10MC-BLU

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

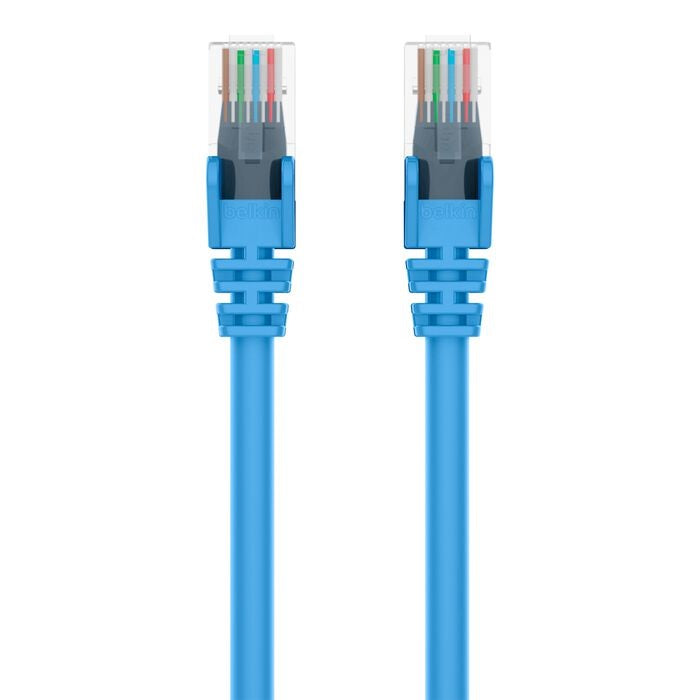

Belkin Cat6 Network Cables (10M) - Blue (A3L980bt10MBLUS)

At a Glance Maximise your network speed with a 7-foot high-bandwidth CAT6 cable. Ideal for VoIP, video, and file transfers Exceeds 500MHz in performance tests Belkin 2 year warranty Specifications Cat6 compliant cable Up to 10Gbps data throughput Backwards compatible with Cat5/Cat5e devices infrastructure Gold plated contacts 50cm, 1m, 2m, 3m, 5m and 10m cable lengths Technical Specifications Cable Characteristic Unshielded twisted pair (UTP) Cable Type Cat 6 Characteristic Impedence 100±15Ω @ 1 ~ 550MHz 100±15Ω @ 1 ~ 550MHz Conductor Construction Bare Stranded Copper Conductor Resistance 93.8Ω/km/20°C max Conductor Size 24AWG x 4pairs Connector on First End 1 x RJ-45 - male Connector on Second End 1 x RJ-45 - male Connectors RJ45 Dielectric Strength AC 1.5kV Flame Retardant Test CM Insulation Material HDPE Jacket Diameter 5.9±0.15mm Jacket Material PVC Mutual Capacitance 56pF/m max Propagation Delay 536nS/100m max @ 550MHz Spark Test 2.5kV Standards Compliance ISO/IEC 11801; TIA/EIA-568-B.2-1 Structural Return Loss 8.6dB min at 550MHz
