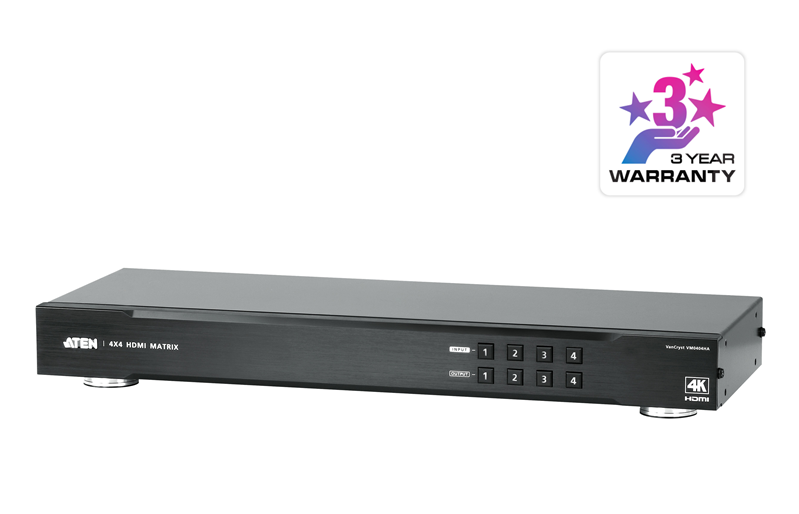

Aten Professional Matrix 4x4 HDMI Matrix, Supports 4K Resolutions tp to UHD, control via front-panel pushbuttons, IR remote and RS232

Product Details

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching

• the VM0404HA is ideal for applications where the routing of 4K digital signals is required
• such as in classrooms
• auditoriums
• department stores and more. The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons
• IR remote and RS-232 control
• ensuring optimum viewing and control of high-definition video. Connects any of 4 HDMI sources to any of 4 HDMI displays Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0) EDID Expert™ – selects optimum EDID settings for smooth power-up
• high-quality display and use of the best video resolution across different screens Multiple Control Methods – system management via front-panel pushbuttons
• IR remote and RS-232 control Supports Dolby True HD and DTS HD Master audio Signaling rates up to 3.4 Gbits for fl awless 4K output HDMI (3D
• Deep Color
• 4K) and HDCP 1.4 compatible Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections ESD protection for HDMI Firmware upgradeable Rack Mountable (1U design)
