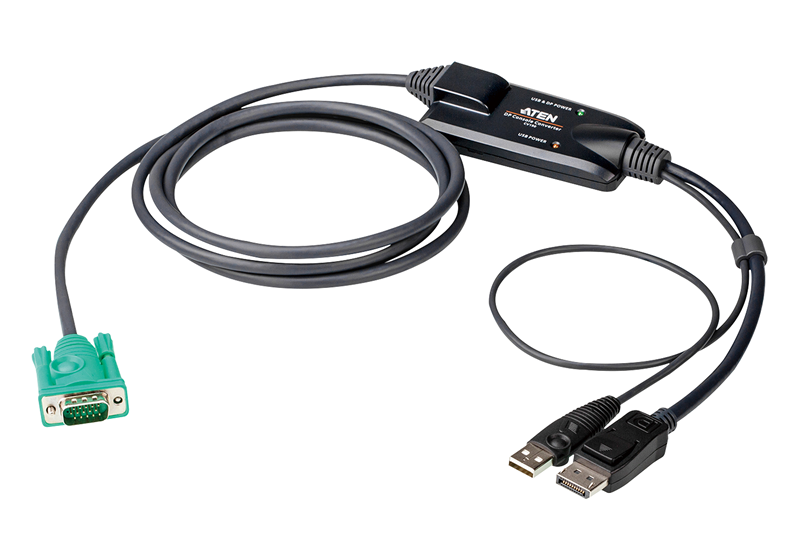

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant
$64.00
ex GST
Skip to product information
Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant
$64.00
ex GST
Out of stockNeed volume-based pricing? Contact us
Product details
Aten DisplayPort Console Converter
- connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC
- up to 1920 x 1080 @ 60 Hz
- compliant with DP 1.1 Featurs: Connects an ATEN SPHD-interfaced KVM switch to a DisplayPort and USB-enabled target computer Supports high video resolution – up to 1920 x 1080 @ 60Hz DisplayPort 1.1 compliant Supports USB keyboard and mouse Bus-powered – no external power adapter required Easy installation – no software required Console Connections 1 Connectors To Computer 1 x USB Type A Male 1 x DisplayPort Male To Switch 1 x SPHD-15 Male Switches Power Selected 1 x Slide Switch LEDs Status 1 (Green; USB DP Power) 1 (Orange; USB Power) Video 1920 x 1080 @ 60 Hz Power Consumption DC5V:1.01W:5BTU Environmental Operating Temperature 0-50°C Storage Temperature -20-60°C Humidity 0-80% RH
- Non-condensing Physical Properties Housing Plastic Weight 0.21 kg ( 0.46 lb ) Cable Length 1.8 m Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.) Note For some of rack mount products
- please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. Package Contents 1x CV190 DisplayPort console converter cable
