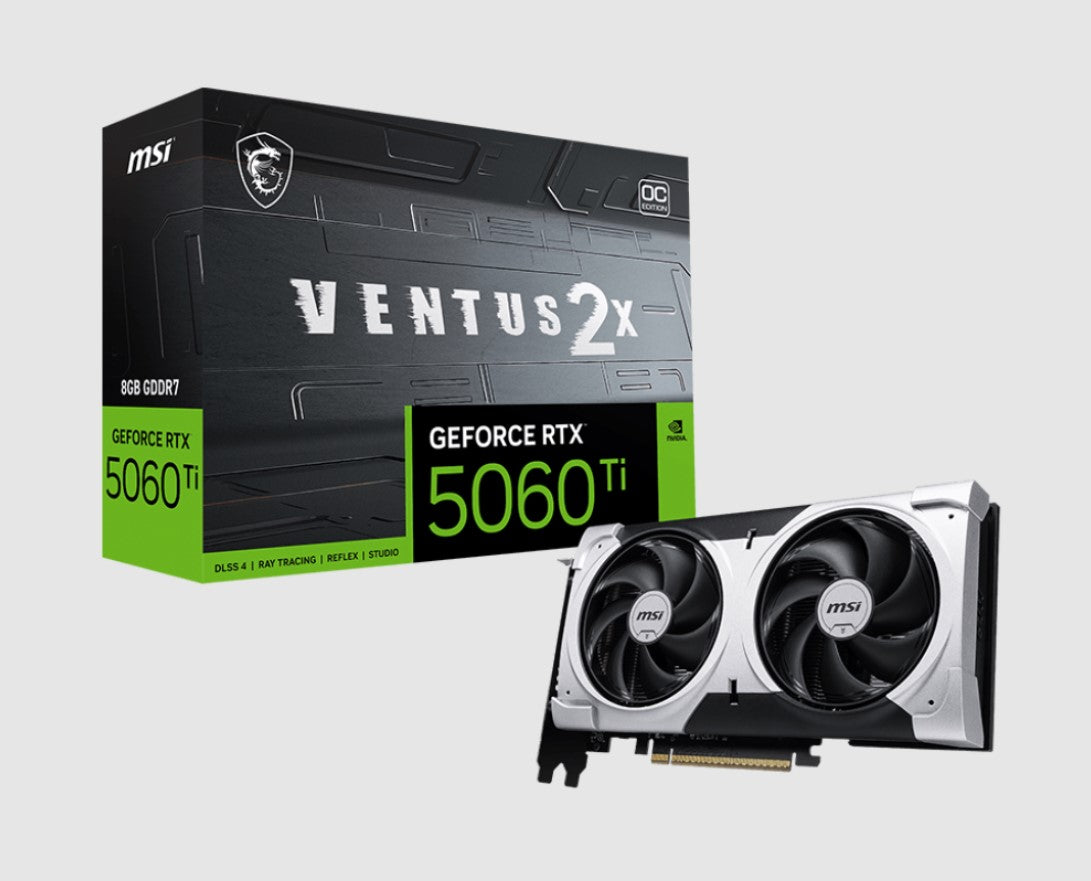

MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS, PCI Express® Gen 5 x16, Boost: 2602 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• PCI Express® Gen 5 x16
• Boost: 2602 MHz
• CUDA 4608 Units
• 8GB GDDR7
• Product SKU: VCM-RTX5060T8GVENT2XOCPL

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS

• PCI Express® Gen 5 x16
• Boost: 2602 MHz
• CUDA 4608 Units
• 8GB GDDR7
• HDMI™ x 1 SPECIFICATIONS Marketing Name GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS Model Name G506T-8V2CP Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti Interface PCI Express® Gen 5 x16 (uses x8) Core Clocks Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz CUDA® CORES 4608 Units Memory Speed 28 Gbps Memory 8GB GDDR7 Memory Bus 128-bit Output DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC
• Gaming VRR
• HDR) HDCP Support Y Power consumption 180 W Power connectors 8-pin x1 Recommended PSU 600 W Card Dimension (mm) 227 x 126 x 41 mm Weight (Card / Package) 573 g / 834 g DirectX Version Support 12 Ultimate OpenGL Version Support 4.6 Maximum Displays 4 G-SYNC® technology Y Digital Maximum Resolution 7680 x 4320 FEATURES Dual Fan Two fans and a huge heatsink ensure a cool and quiet experience for you. STORMFORCE FAN Seven fan blades
• claw texturing
• and a circular arc are designed for optimal airflow with minimal noise. Reinforcing Backplate The reinforcing backplate features a flow-through design that provides additional ventilation. Zero Frozr The fans completely stop when temperatures are relatively low
• eliminating all noise. DrMOS DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls. Fuse Additional fuses built into the custom PCB provide additional safeguards against electrical damage. MSI Center The exclusive MSI Center software lets you monitor
• tweak and optimize MSI products in real-time. Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world.
