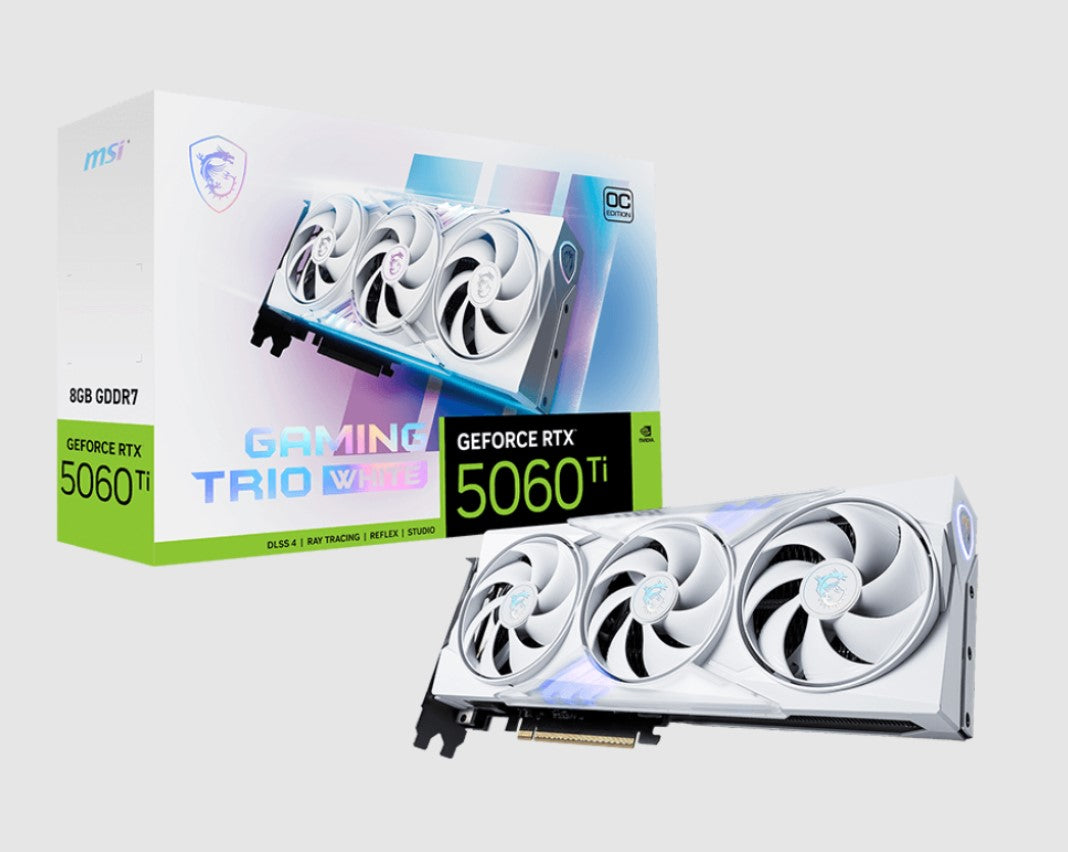

MSI nVidia GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITE, PCI Express® Gen 5 x 16, Boost: 2647 MHz, CUDA 4608 Units, 8GB GDDR7, HDMI™ x 1

Product details

MSI nVidia GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITE

• PCI Express® Gen 5 x 16
• Boost: 2647 MHz
• CUDA 4608 Units
• 8GB GDDR7
• HDMI™ x 1 (emabargo) SPECIFICATIONS Marketing Name GeForce RTX™ 5060 Ti 8G GAMING TRIO OC WHITE Model Name G506T-8GTCW Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti Interface PCI Express® Gen 5 x16 (uses x8) Core Clocks Extreme Performance: 2662 MHz (MSI Center) Boost: 2647 MHz CUDA® CORES 4608 Units Memory Speed 28 Gbps Memory 8GB GDDR7 Memory Bus 128-bit Output DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC
• Gaming VRR
• HDR) HDCP Support Y Power consumption 180 W Power connectors 16-pin x 1 Recommended PSU 600 W Card Dimension (mm) 300 x 125 x 44 mm Weight (Card / Package) 839 g / 1345 g DirectX Version Support 12 Ultimate OpenGL Version Support 4.6 Maximum Displays 4 G-SYNC® technology Y Digital Maximum Resolution 7680 x 4320 FEATURES TRI FROZR 4 Upgraded fans
• airflow control
• and thermal design deliver superior cooling and quieter operation. STORMFORCE FAN Seven fan blades
• claw texturing
• and a circular arc are designed for optimal airflow with minimal noise. Nickel-plated Copper Baseplate Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred. Core Pipes Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management. Metal Backplate A reinforcing metal backplate with airflow vents and thermal pads enhances cooling. Wave Curved 4.0 Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence. Air Antegrade Fin 2.0 The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency. MSI Center The exclusive MSI Center software lets you monitor
• tweak and optimize MSI products in real-time. Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world.
