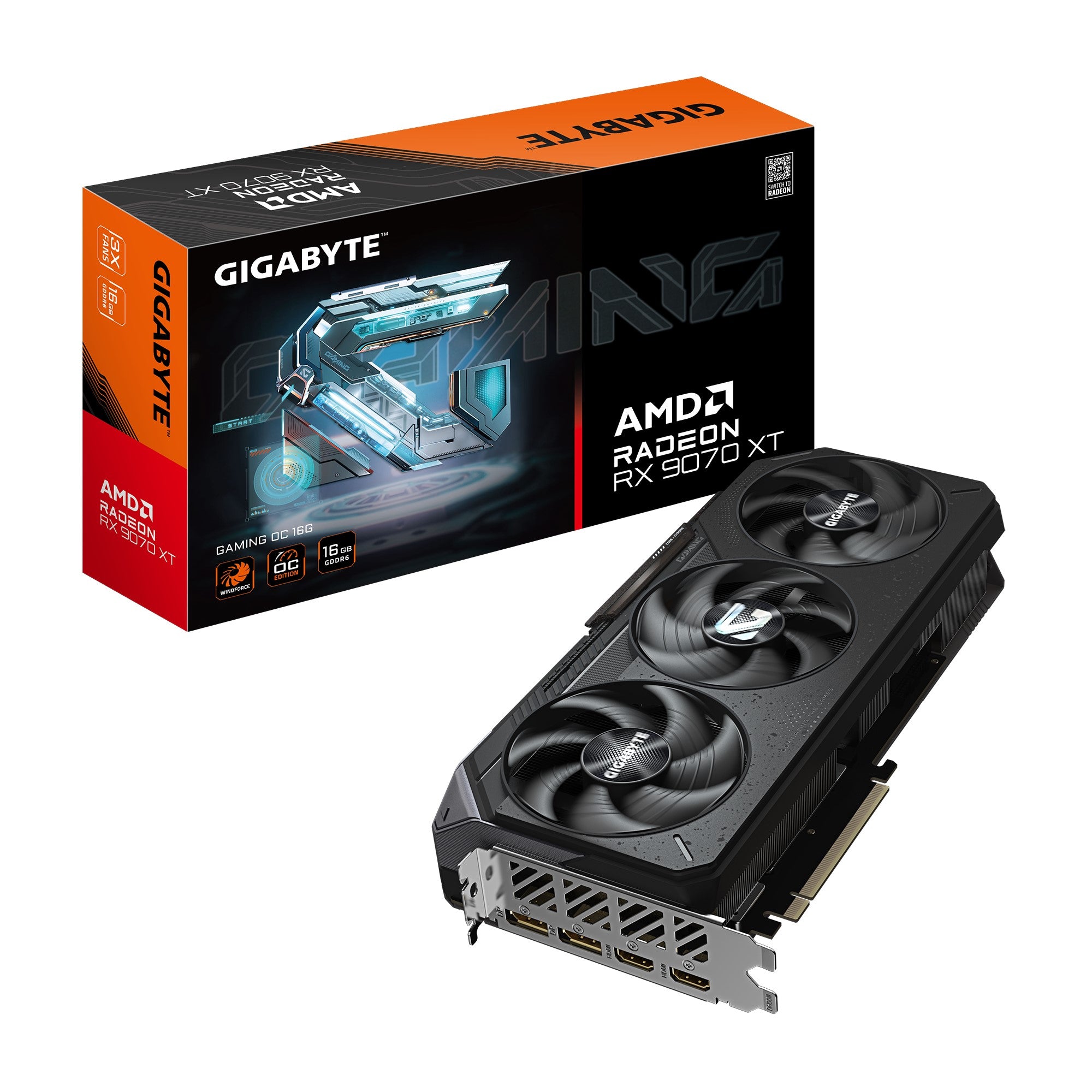

(LS) Gigabyte Radeon™ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2
$1,149.00
ex GST
Skip to product information
(LS) Gigabyte Radeon™ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2
$1,149.00
ex GST
In stockNeed volume-based pricing? Contact us
Product details
Gigabyte Radeon™ RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2
Specification
| Graphics Processing | |
|---|---|
| Radeon™ RX 9070 XT | |
| Core Clock | |
| Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz) | |
| Game Clock* : up to 2520 MHz (Reference card: 2400 MHz) | |
| Stream Processors |
4096
| Memory Clock | |
|---|---|
| 20 Gbps | |
| Memory Size |
16gb
| Memory Type |
|---|
Gddr6
| Memory Bus | |
|---|---|
| 256 bit | |
| Card Bus | |
| PCI-E 5.0 | |
| Digital max resolution | |
| 7680x4320 | |
| Multi-view |
4
| Card size | |
|---|---|
| L=288 W=132 H=56 mm | |
| PCB Form |
Atx
| DirectX | |
|---|---|
| DirectX 12 API | |
| OpenGL | |
| 4.6 | |
| Recommended PSU |
850w
| Power Connectors | |
|---|---|
| 8 pin*3 | |
| Output | |
| DisplayPort 2.1a *2 | |
| HDMI 2.1b *2 | |
| Accessories | |
| Quick guide | |
| Note | |
| * “Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151 | |
| * “Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147 |
Features
| Powered by Radeon™ RX 9070 XT | |
|---|---|
| Integrated with 16GB GDDR6 256bit memory interface | |
| WINDFORCE cooling system | |
| Hawk fan | |
| Server-grade Thermal conductive gel | |
| RGB Lighting | |
| Dual BIOS (Performance / Silent) | |
| Reinforced structure |
Windforce Cooling System
| The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling. |
|---|
Astonishing Exterior Design
| The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology. |
|---|
Multi-Layered Visual
| Like armor, the exterior features a multi-layered structure combined with varied surface material finishes. |
|---|
Unique Texture
| Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics. |
|---|
Rgb Lighting
| With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER. |
|---|
Sliding Side Plate
| Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style. |
|---|
Reinforced Structure
| The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity. |
|---|
