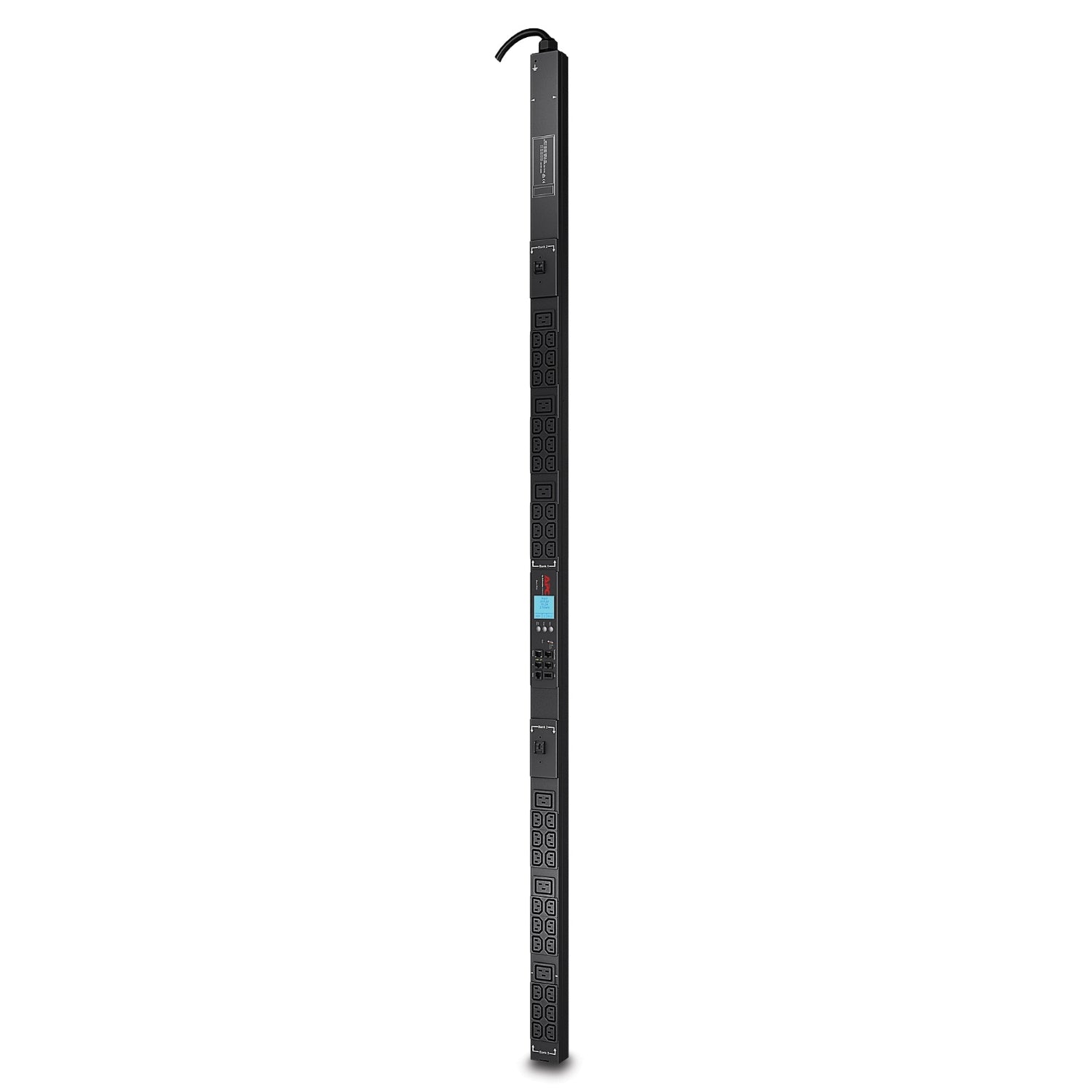

APC Netshelter Metered Rack PDU | 0U | 230V/32A Input

Product details

Compare the input supply, outlet types and mounting or placement requirements.

Quick comparison

• Voltage: 230V
• 0U
• 230V/32A Input
• 6x IEC C19 36x IEC C13 Outlets
• Product SKU: UPAPCAP8853

Before you order

Confirm electrical ratings and the total connected load. Check plug, outlet and installation compatibility with your equipment.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

APC NetShelter Metered Rack PDU, 0U, 1PH, 7.4kW 230V 32A, 36 C13 and 6 C19 outlets, IEC 309 2P+E cord

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Colour Black

PDU type Metered

Cord length 3.00 m

Number of cables 1

Provided equipment- Installation guide, Rack mounting brackets, Serial configuration cable, Safety guide

Input Voltage 200 V 208 V 230 V

Output Voltage 230 V

Rack units 0U

USB compatible No

Mounting position Vertical

Permissible voltage 220…240 V

Max line current 32 A

Input current limits 32 A

Load capacity 7400 VA

Network frequency 50/60 Hz

Total number of outlets 36 IEC 60320 C13, 6 IEC 60320 C19

Product certifications- VDE Standards IEC 60950

Ambient air temperature for operation -5…60 °C

Relative humidity 5…95 %

Operating altitude 0...10000 ft

Ambient air temperature for storage -25…65 °C

Storage Relative Humidity 5…95 %

Storage altitude 0.00…15240.00 m

Mounting mode- Rack mounted

Compatible PDU- AP8000BLU, AP8000RED, AP8702R-WW, AP8702S-WW, AP8702S-WWX340

Compatible Sensors- AP9335T, AP9335TH

Compatible Mounting- AR7711
