APC NetShelter Basic Rack PDU | 0U | 1PH

Product details

Compare the input supply, outlet types and mounting or placement requirements.

Quick comparison

• Power rating: 3.3kW
• Voltage: 240V
• Product SKU: UPA-AP6020A

Before you order

Confirm electrical ratings and the total connected load. Check plug, outlet and installation compatibility with your equipment.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

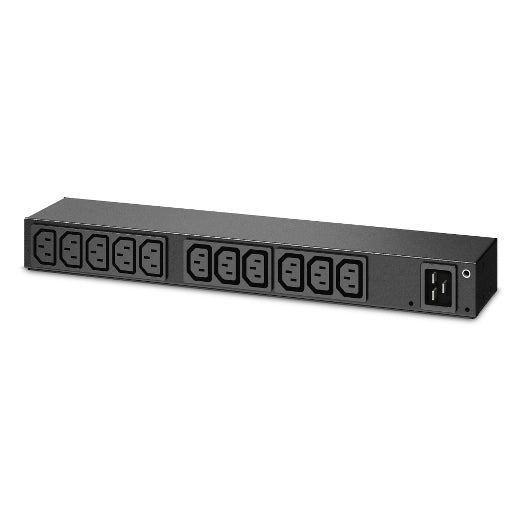

APC NetShelter Basic Rack PDU, 0U, 1PH, 3.3kW, 100-240V 20A or 200-240V 16A, 13 C13 outlets, C20 inlet

Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.

Colour Black

PDU type Basic

Provided equipment- Installation guide, Safety guide

Input Voltage- 100 V, 120 V, 200 V, 208 V, 230 V, 240 V

Rack units 1U

USB compatible No

Mounting position Horizontal

[In] rated current 16 A

Permissible voltage 100…240 V

Max line current 20 A

Input current limits 20 A

Load capacity 3300 VA

Network frequency 50/60 Hz

Total number of outlets 13 IEC 60320 C13

Product certifications- cUL listed, CE, EAC, IRAM, PSE, UL listed, VDE

Mounting mode- Not rack mountable

Compatible Racks- AR3100, AR3003, AR3006, AR3103, AR3104, AR3105, ER6202, ER8222
