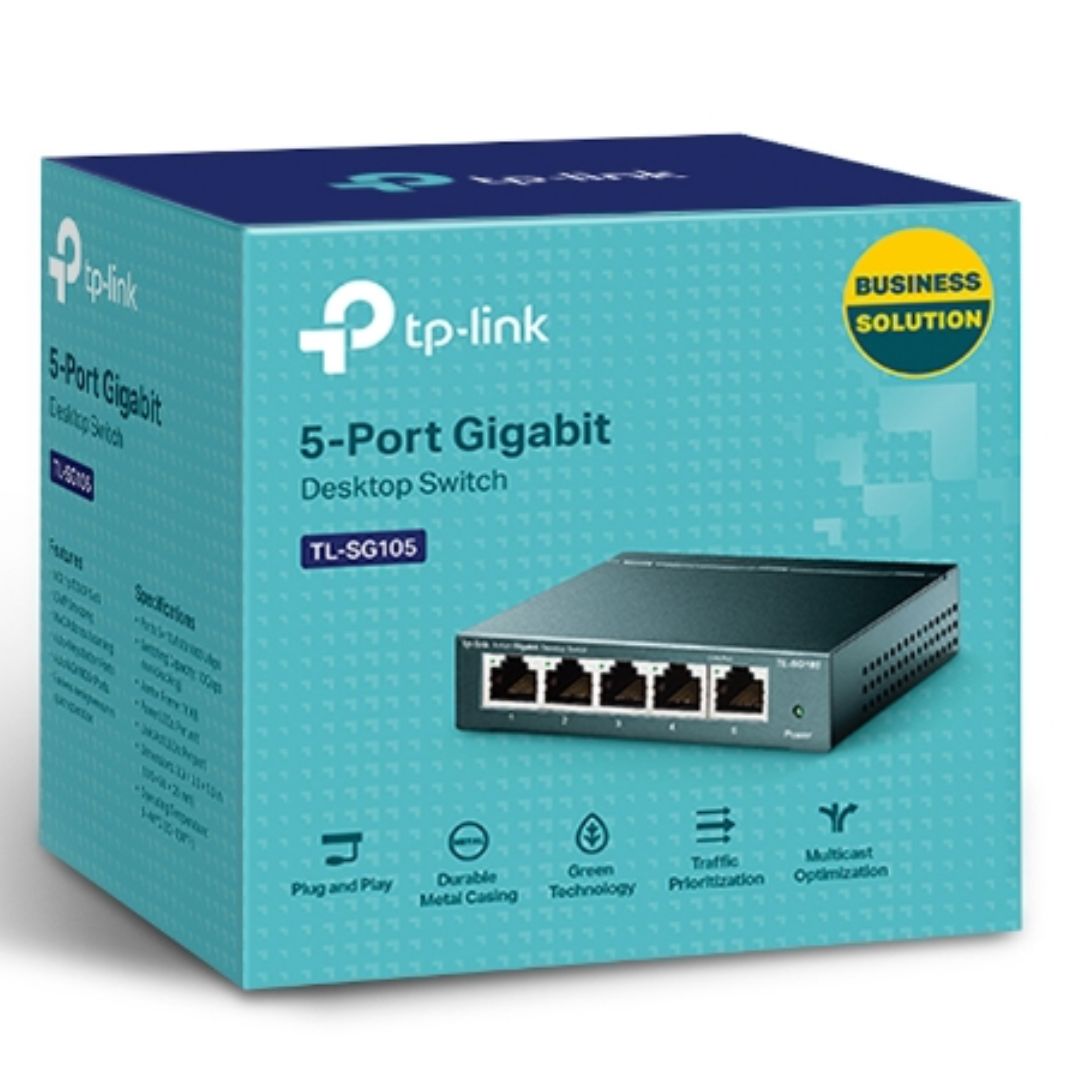

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case, 5-Port 10/100/1000Mbps RJ45 Supporting Auto-MDI/MDIX, Plug and Play, Fanless

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 5-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG105

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case

5-Port 10/100/1000Mbps Desktop Switch

5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Plug and play, no configuration needed

Supports 802.1p/DSCP QoS and IGMP Snooping functions

Durable metal casing, desktop/wall-mounting options, and a fanless design

IEEE 802.3x flow control provides reliable data transfer

Green Ethernet technology reduces power consumption

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface — 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity — Fanless

External Power Supply — External Power Adapter (Output: 5 V DC / 0.6A)

LED Indicator — System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) — (100 x 98 x 25 mm)

Max Power Consumption — 2.3 W (220 V/ 50 Hz)

Max Heat Dissipation — 7.83 BTU/h

PERFORMANCE

Packet Forwarding Rate — 7.4 Mpps

MAC Address Table — 2K

Packet Buffer Memory — 1 Mb

Jumbo Frame — 16 KB

SOFTWARE FEATURES

Advanced Features — Green Technology

802.3X Flow Control

802.1P/DSCP QoS (for V2 and later version)

IGMP Snooping

Transfer Method — Store and Forward

OTHERS

Certification — CE, FCC, RoHS

Package Contents — 5-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment — Operating Temperature: 0–40 °C (32–104 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
