TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Unmanaged Switch energy-efficient Supports MAC Plug & play 48Gbps Switching Capacity

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 24-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG1024D

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

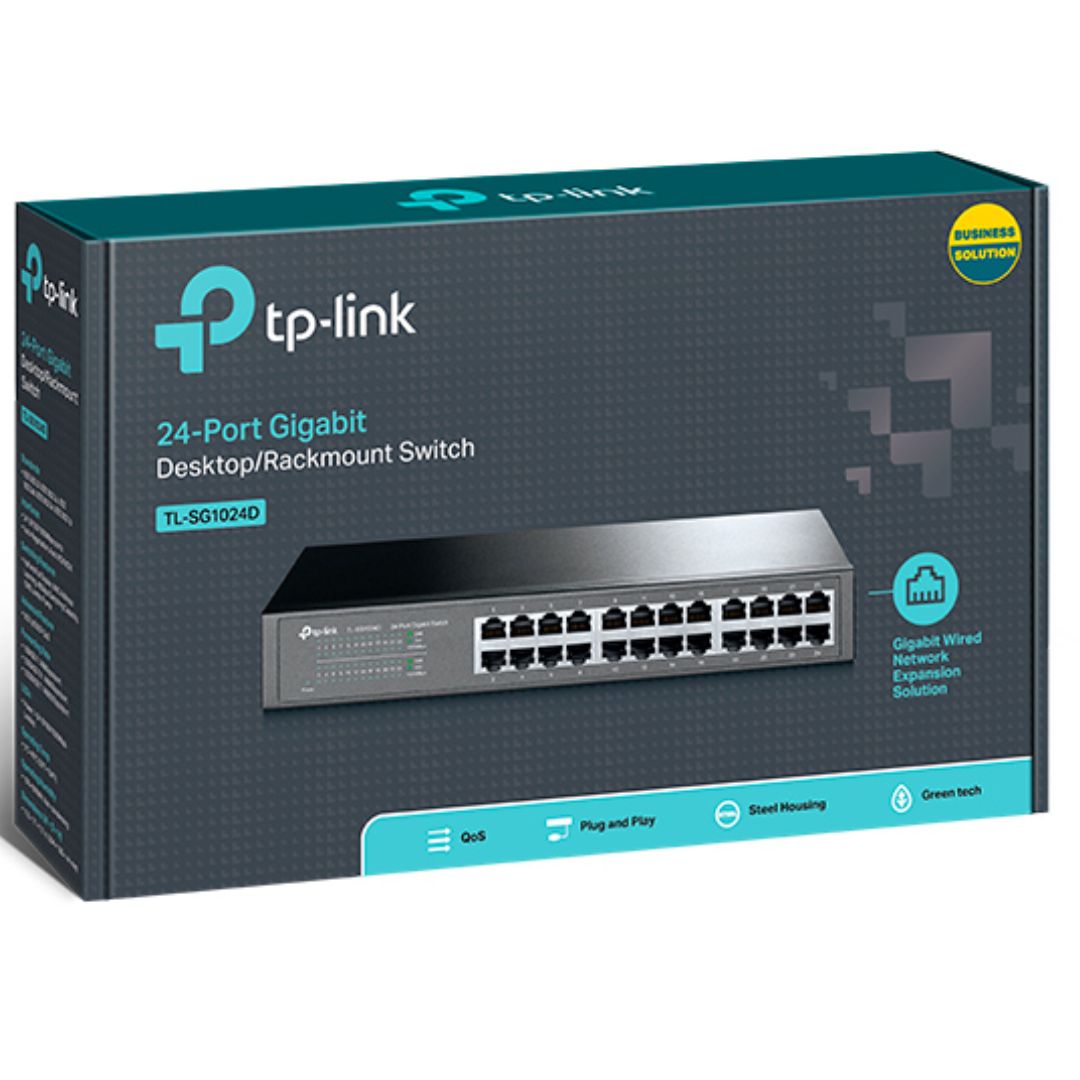

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch

24 10/100/1000Mbps ports

Innovative energy-efficient technology saves power consumption

Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation

Plug & play design

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface — 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity — Fanless

Physical Security Lock — No

Power Supply — 100-240VAC, 50/60Hz

Power Consumption — Maximum: 13.1W (220V/50Hz)

Dimensions ( W x D x H ) — 11.6*7.1*1.7 in. (294*180*44 mm)

Mounting — Rack Mountable

Max Power Consumption — 13.62W(220V/50Hz)

Max Heat Dissipation — 46.44BTU/h

PERFORMANCE

Switching Capacity — 48Gbps

Packet Forwarding Rate — 35.7Mpps

MAC Address Table — 8K

Jumbo Frame — 10KB

Green Technology — Yes

Transfer Method — Store-and-Forward
