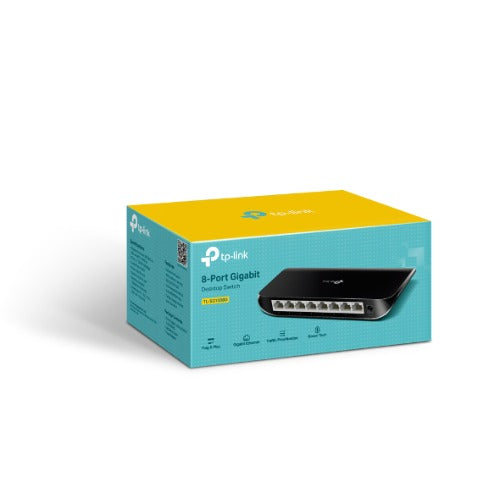

TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Desktop Wall-Mounting Plastic Case Fanless Supports MAC address 802.1p/DSCP QoS

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 8-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG1008D

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch Desktop Wall-Mounting Plastic Case Fanless Supports MAC address 802.1p/DSCP QoS

8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

Green Ethernet technology saves the power up to 80%

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop or wall-mounting design

Plug and play, no configuration required

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface — 8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity — Fanless

Physical Security Lock — No

External Power Supply — External Power Adapter (Output: 9VDC/0.6A)

Jumbo Frame — 15 KB

Switching Capacity — 16 Gbps

Dimensions ( W x D x H ) — 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)

Max Power Consumption — 4.63W(220V/50Hz)

Max Heat Dissipation — 15.80BTU/h

SOFTWARE FEATURES

Transfer Method — Store and Forward

MAC Address Table — 4K

Advanced Functions — Green Technology

802.3X Flow Control

Back Pressure

802.1p/DSCP QoS (for V7 and later version)

OTHERS

Certification — FCC, CE, RoHs

Package Contents — 8-Port Gigabit Desktop Switch TL-SG1008D

Power Adapter

Installation Guide

System Requirements

Environment — Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Warranty — Limited 3-Year Warranty

For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
