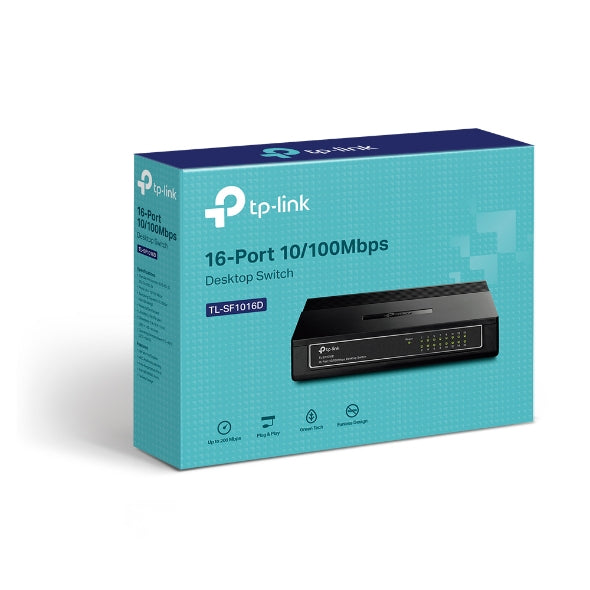

TP-Link TL-SF1016D 16-Port 10/100Mbps Desktop Switch or wall-mounting design Plug and play 3.2Gbps Switching Capacity Auto-MDI/MDIX Supports MAC

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 16-Port
• Listed network standard or speed: 10/100Mbps
• Product SKU: NWTL-SF1016D

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

16 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX

Green Ethernet technology saves the power up to 80%

IEEE 802.3x flow control provides reliable data transfer

Plastic case, desktop or wall-mounting design

Plug and play, no configuration required

HARDWARE FEATURES

Interface — 16× 10/100 Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity — Fanless

Physical Security Lock — No

External Power Supply — External Power Adapter(Output: 5.0VDC / 0.6A)

Mac Address Table — 2K

Dimensions ( W x D x H ) — 7.9*5.6*1.6 in. (200*142*40 mm)

Max Power Consumption — 3.23 W (220V/50Hz)

Max Heat Dissipation — 11.01 BTU/h

SOFTWARE FEATURES

Transfer Method — Store and Forward

Advanced Functions — Green Technology,

802.3X Flow Control,

OTHERS

Certification — FCC, CE, RoHs

Package Contents — 16-Port 10/100Mbps Desktop Switch TL-SF1016D

Power Adapter

User Guide

System Requirements — Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
