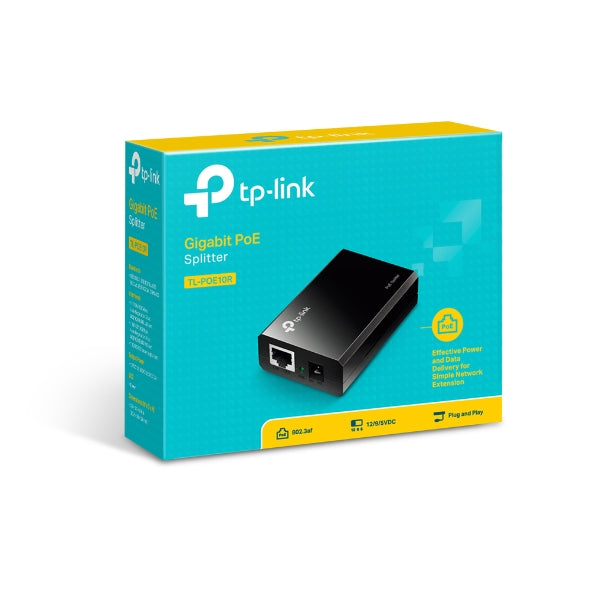

TP-Link POE10R Omada PoE Splitter 2xGbE Gigabit RJ45 Port Power Over Ethernet Adapter carry Power & Data over 100m Plug & Play

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: TP-Link POE10R Omada PoE Splitter 2xGbE Gigabit RJ45 Port Power Over Ethernet Adapter carry Power & Data over 100m Plug & Play
• Product SKU: NHTL-POE10R

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-POE10R PoE Splitter

IEEE 802.3af compliant

Delivers power up to 100 meters

Gigabit speed support

Optional 12V DC 9V DC or 5V DC power supply

Plug-and-Play, requires no configuration

HARDWARE FEATURES

Interface — 2 10/100/1000Mbps RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

1 POWER OUTPUT PORT

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Power Supply — 12VDC 1A, 9VDC 1A, 5VDC 2A

Basic Function — Compatible With IEEE 802.3af Compliant PSEs

Delivers Power Up To 100 Meters

Optional 12VDC, 9VDC or 5VDC Power Output

LED Indicator — PWR

Dimensions ( W x D x H ) — 3.2*2.1*0.9 in.(80.8*54*24 mm)

SOFTWARE FEATURES

Basic Function — Compatible With IEEE 802.3af Compliant PSEs

Delivers Power Up To 100 Meters

Optional 12VDC, 9VDC or 5VDC Power Supply
