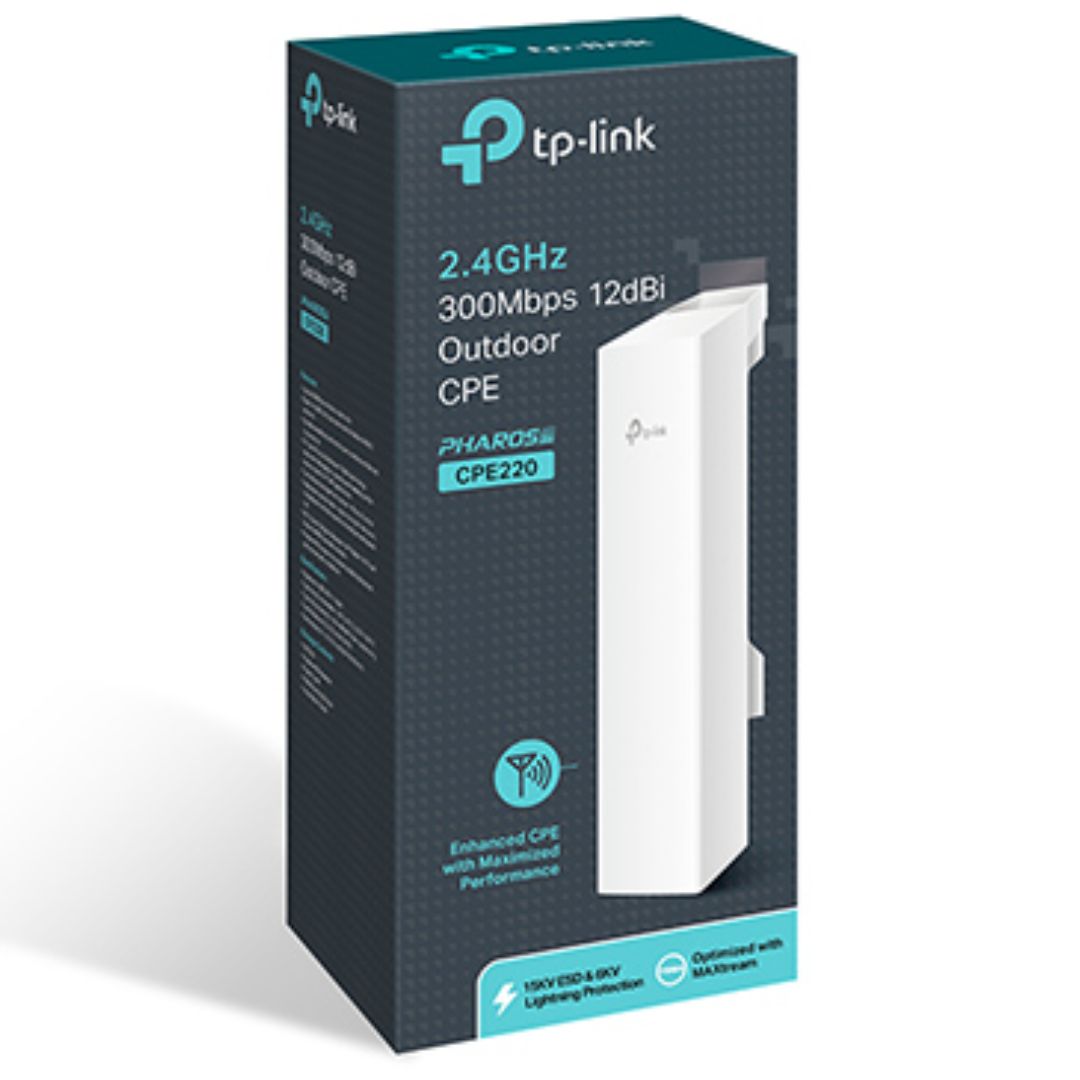

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE AP.,Client,AP Router,AP Client Router 13km+ Wireless Data Transmission

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: 300Mbps
• Wireless band: 2.4GHz
• Product SKU: NWTL-CPE220

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link CPE220 2.4GHz 300Mbps 12dBi High Power Outdoor CPE Access Point 802.11b/g/n 2x2 dual-polarized directional MIMO antenna Passive PoE up to13km

Built-in 12dBi 2x2 dual-polarized directional MIMO antenna

Adjustable transmission power from 0 to 30dBm/1000mw

System-level optimizations for more than 13km long range wireless transmission

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

Centralized Management System – Pharos Control

AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

HARDWARE FEATURES

Processor — Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory — 64MB DDR2 RAM, 8MB Flash

Interface — 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

1 Grounding Terminal

1 Reset Button

Power Supply — Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

Power Consumption — 10.8 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will

be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H ) — 11×3.1×2.1 inch (276×79×60 mm)

Antenna Type — Built-in 12dBi 2x2 Dual-polarized Directional Antenna

Beam Width: 60° (H-Plane) / 30° (E-Plane)

Note: For more details, please refer to datasheet

Protection — 15KV ESD Protection

6KV Lightning Protection

Enclosure — Outdoor ASA stabilized plastic material

IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards — IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol — TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds — Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps
