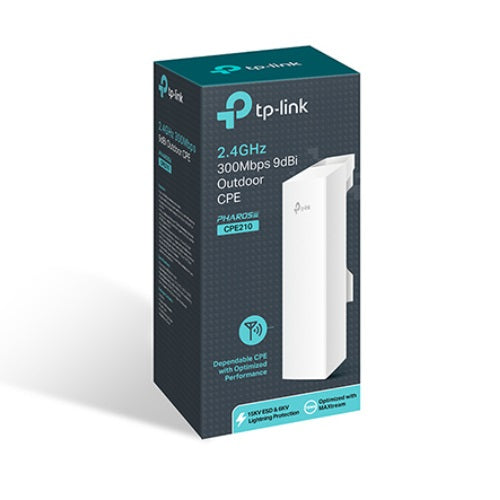

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point 27dBm 5km Passive PoE MIMO antenna

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: 300Mbps
• Wireless band: 2.4GHz
• Product SKU: NWTL-CPE210

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE Access Point

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna

Adjustable transmission power from 0 to 27dBm/500mw

System-level optimizations for more than 5km long range wireless transmission

TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications

Centralized Management System – Pharos Control

AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes

Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

HARDWARE FEATURES

Processor — Qualcomm Atheros 560MHz CPU, MIPS 74Kc

Memory — 64MB DDR2 RAM, 8MB Flash

Interface — 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)

1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)

1 Grounding Terminal

1 Reset Button

Power Supply — Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)

Voltage range: 16-27VDC

Power Consumption — 10.5 Watts Max

Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.

Dimensions ( W x D x H ) — 224 x 79 x 60 mm

Antenna Type — Built-in 9dBi 2x2 Dual-polarized Directional Antenna

Beam Width: 65° (H-Plane) / 35° (E-Plane)

Note: For more details, please refer to datasheet

Protection — 15KV ESD Protection

6KV Lightning Protection

Enclosure — Outdoor ASA stabilized plastic material

IPX5 waterproof Certification

WIRELESS FEATURES

Wireless Standards — IEEE 802.11b/g/n (with Pharos MAXtream disabled)

Proprietary Protocol — TDMA Mode (with Pharos MAXtream enabled)

Wireless Speeds — Up to 300Mbps (40MHz,Dynamic)

Up to 144.4Mbps (20MHz,Dynamic)

Up to 72.2Mbps (10MHz,Dynamic)

Up to 36.1Mbps (5MHz,Dynamic)

Frequency — 2.4~2.483GHz

Note: Available operating frequency may vary depending on the limitation
