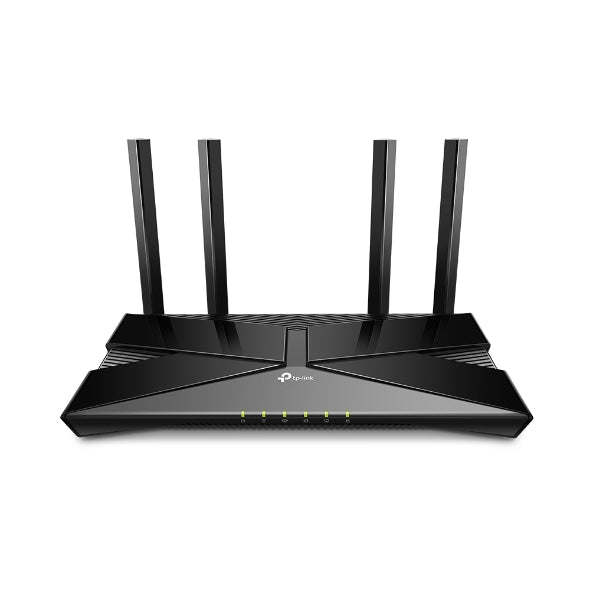

TP-Link Archer AX10 AX1500 Wi-Fi 6 (802.11ax) Router 4x Gigabit Ports (WIFI6)

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: Gigabit
• Product: TP-Link Archer AX10 AX1500 Wi-Fi 6 (802.11ax) Router 4x Gigabit Ports (WIFI6)
• Product SKU: NWTL-ARCHERAX10

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link Archer AX10 AX1500 Wi-Fi 6 Router

• — Wi-Fi 6 Technology—Archer AX10 comes equipped with the Wi-Fi 6 technology, for faster speeds, greater capacity, and reduced network congestion.

• — Dual-band 1.5 Gbps Speeds—Archer AX10 dual-band router reaches even faster speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band).

• — Connect Dozens of Devices—More simultaneous connections and reduced latency with OFDMA and MU-MIMO.

• — Broader Coverage—4 Antennas and Beamforming technology focus signal towards individual clients for broader coverage.

• — Full Gigabit Ports—Take full advantage of broadband speeds up to 1 Gbps.

• — Easy Setup—Finish your network upgrade in minutes with Tether app.

• — Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Warranty Period: 3-Year

HARDWARE FEATURES

Processor — 1.5 GHz Triple-Core CPU

Memory — 256 MB RAM 16 MB Flash

Interface — 1 × 1000/100/10 Mbps WAN Port 4 × 1000/100/10 Mbps LAN Ports

Button — WPS/Wi-Fi On/Off Button, Reset Button, Power On/Off Button

External Power Supply — 12 V/5 A

Dimensions ( W x D x H ) — 10.2 × 5.3 ×1.5 in. (260.2 × 135.0 × 38.6 mm)

Antenna — 4× Fixed Omni-Directional Antennas

WIRELESS FEATURES

Wireless Standards — IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

Frequency — 5 GHz and 2.4 GHz

Signal Rate — 1201 Mbps (5 GHz, 11ax)

300 Mbps (2.4 GHz, 11n)

Compatible with 802.11a/b/g/n/ac Wi-Fi standards

Reception Sensitivity

5 GHz:

11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm

11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm

11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm

11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm

2.4 GHz:

11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm

11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm

11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm

Transmit Power — CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

Wireless Functions — Enable/Disable Wireless Radio, Guest network, OFDMA

Wireless Security — 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
