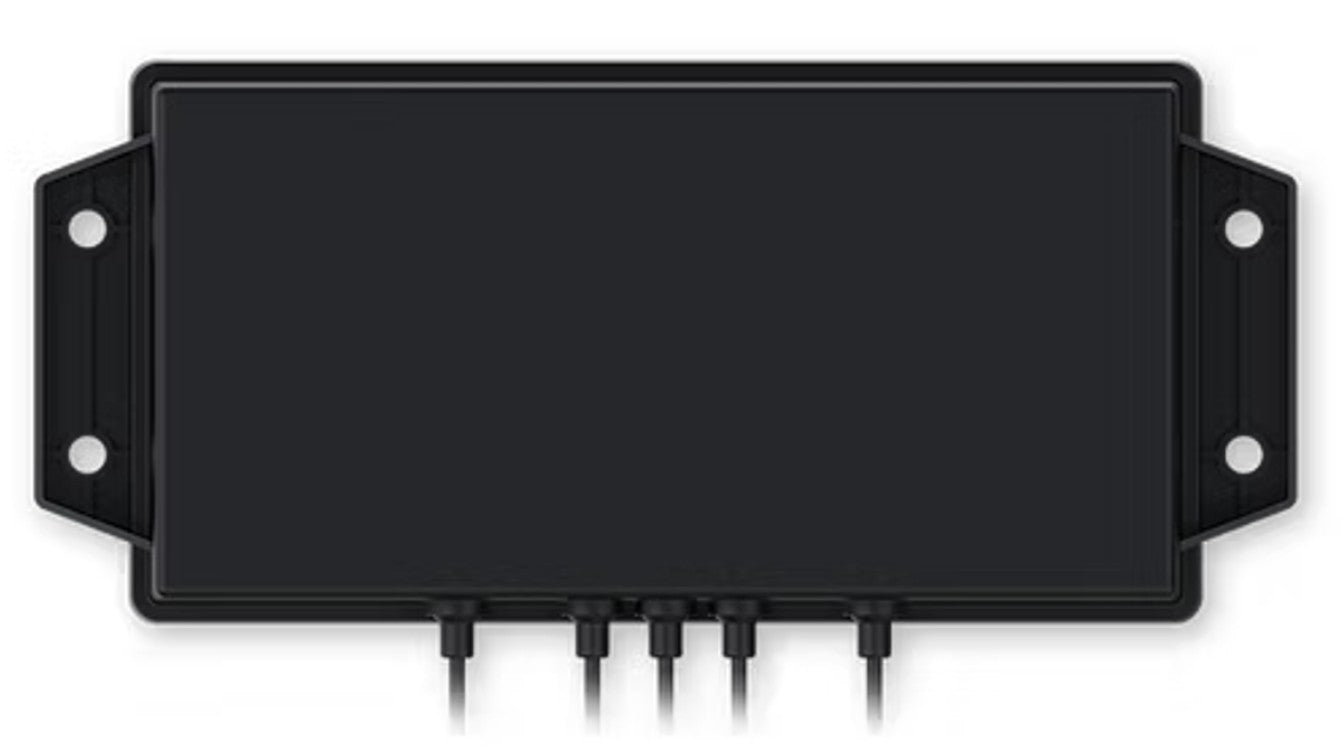

Teltonika 5G COMBO MOBILE/GNSS SMA ANTENNA

Product details

Technical Data Mounting type M6 Screw or Adhesive Enclosure material PC/PC+ABS UV resistant ✓ Cable length 3000 mm Weight 450 g Operating temperature -40 °C ~ +80 °C Operating humidity ≤ 90 % Ingress Protection Rating IP67 RoHS compliant ✓ 5G MOBILE MIMO ANTENNA Frequency range 600 ~ 960, 1427 ~ 2700, 3300 ~ 4200, 4400 ~ 5000 MHz Polarisation Linear Radiation pattern type Omni-directional Gain ≤ 4 dBi V.S.W.R ≤ 2.5 Impedance 50 Ω Connector type and count 4 x SMA Male Cable type 4 x LMR100 GNSS ANTENNA Frequency range 1559 ~ 1610, 1164 ~ 1189 MHz Polarisation RHCP Radiation pattern type Directional Gain ≤ 2 dBi LNA Gain 17 ± 2 dB LNA noise figure ≤ 2 dB V.S.W.R ≤ 2 Impedance 50 Ω Supply voltage 3 ~ 5 VDC Current consumption 15 mA Connector type and count 1 x SMA Male Cable type 1 x LMR100
