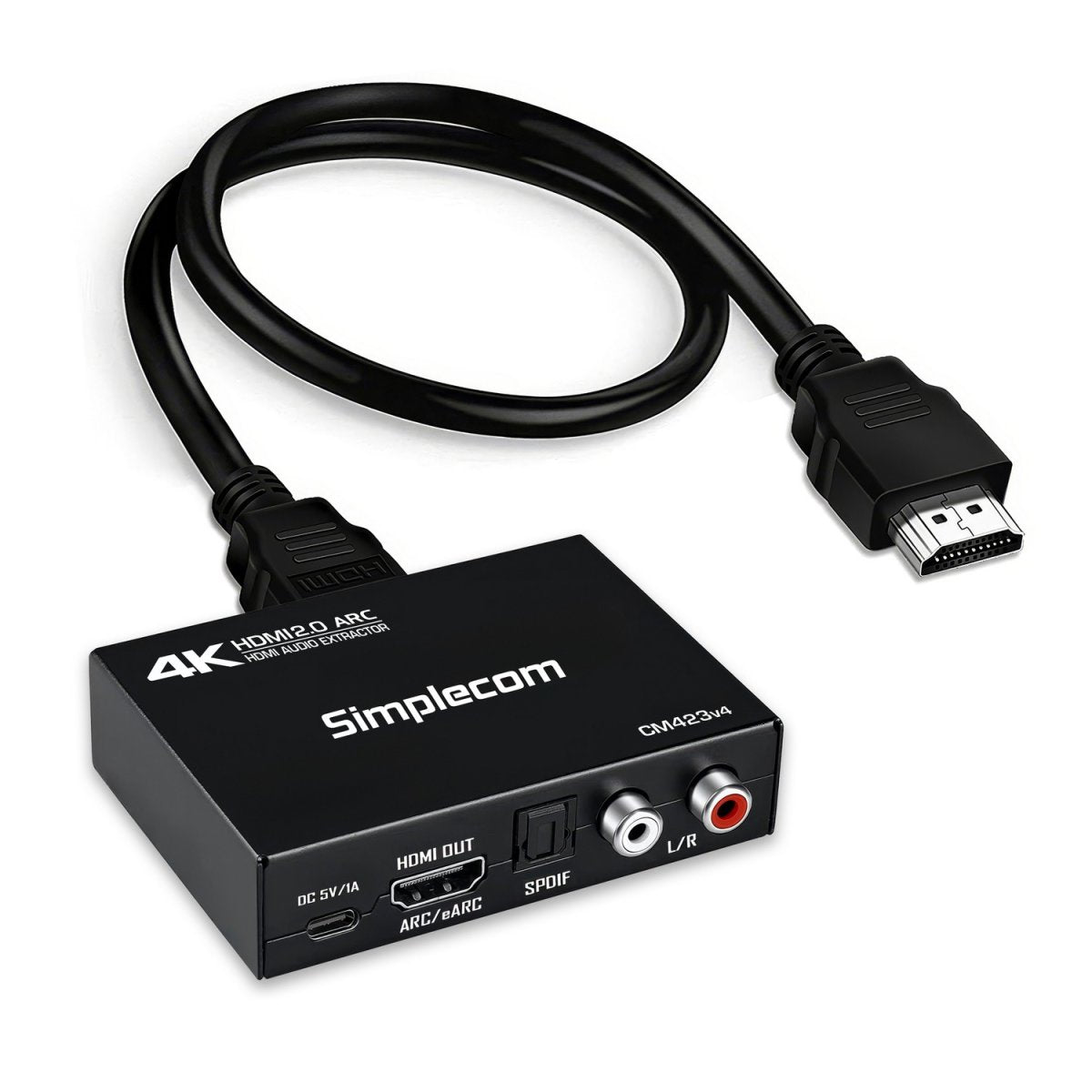

Simplecom CM423v4 HDMI 2.0 Audio Extractor Dual-Mode with ARC/eARC Optical SPDIF 2RCA 3.5mm Stereo 4K@60Hz

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: Simplecom CM423v4 HDMI 2.0 Audio Extractor Dual-Mode with ARC/eARC Optical SPDIF 2RCA 3.5mm Stereo 4K@60Hz
• Product SKU: CBSI-CM423V4

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

Simplecom CM423v4 HDMI 2.0 Audio Extractor Dual-Mode with ARC/eARC Optical SPDIF 2RCA 3.5mm Stereo 4K@60Hz

This HDMI 2.0 Audio Extractor is designed to deliver flexible, high-quality audio extraction for a wide range of AV setups. Fully compliant with the HDMI 2.0b standard, it supports up to 18Gbps bandwidth and resolutions up to 4K@60Hz, making it an ideal solution for outputting audio to an external speaker system with analog or optical inputs, especially for audio systems without HDMI inputs.

Featuring dual audio extraction modes, it allows you to extract audio either directly from an HDMI source device or from your TV’s ARC/eARC HDMI port. In HDMI input extraction mode, the device passes the HDMI signal through to your display while simultaneously extracting audio. In ARC extraction mode, it enables direct audio extraction from an ARC/eARC-enabled TV for connection to external speakers, soundbars, or audio systems.

The extractor provides both Optical SPDIF and analog stereo outputs, offering flexible connectivity for a wide range of audio equipment. With HDCP 2.2 compliance, it ensures reliable playback of protected content. The device is conveniently powered via USB, making installation simple and efficient.

Features

•Compliant with the HDMI 2.0b standard for broad compatibility

•Dual audio extraction modes: HDMI input audio extraction or HDMI ARC extraction

•Supports 18Gbps bandwidth and HDMI input/output resolution up to 4K@60Hz

•Allows HDMI input to be passed through to an HDMI output while using HDMI input audio extraction mode

•Enables audio extraction from a TV's ARC/eARC HDMI port when using HDMI ARC extraction mode

•Optical SPDIF and analog stereo audio output extracted from HDMI input or ARC

•HDCP 2.2 compliant, ensuring compatibility with encrypted media

•Powered by USB, USB-C port for power input

•Supports compressed audio DTS Digital, Dolby Digital and uncompressed audio PCM, LPCM

Specifications

HDMI Version: HDMI 2.0b (backwards compatible)

HDMI resolution support: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz

Input: 1x HDMI Input

Audio Outputs: PDIF (Optical), 3.5mm Audio (Analog), 2RCA Audio (Analog)

Video Output: 1x HDMI output (HDMI pass-through)

ARC/eARC Support: Yes (via HDMI OUT)

HDMI 3D Support: Yes

HDCP Version: HDCP 2.2

Max Bandwidth: 600MHz

Max Baud Rate: 18Gbps

Support Color Format: 24bit, 30bit, 36bit deep color

Digital audio Support: Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, LPCM

Max Input Cable Distance: 10m AWG26 HDMI standard cable

Max Input Cable Distance: 10m AWG26 HDMI standard cable

Power Input: USB-C (5V/1A)

Dimension: 85 x 61 x 22mm (LxWxH)

Package Contents

1x HDMI Audio Extractor

1x 0.5M HDMI Lead

1x USB Power cable

1x Optical Audio Cable

1x User Manual
