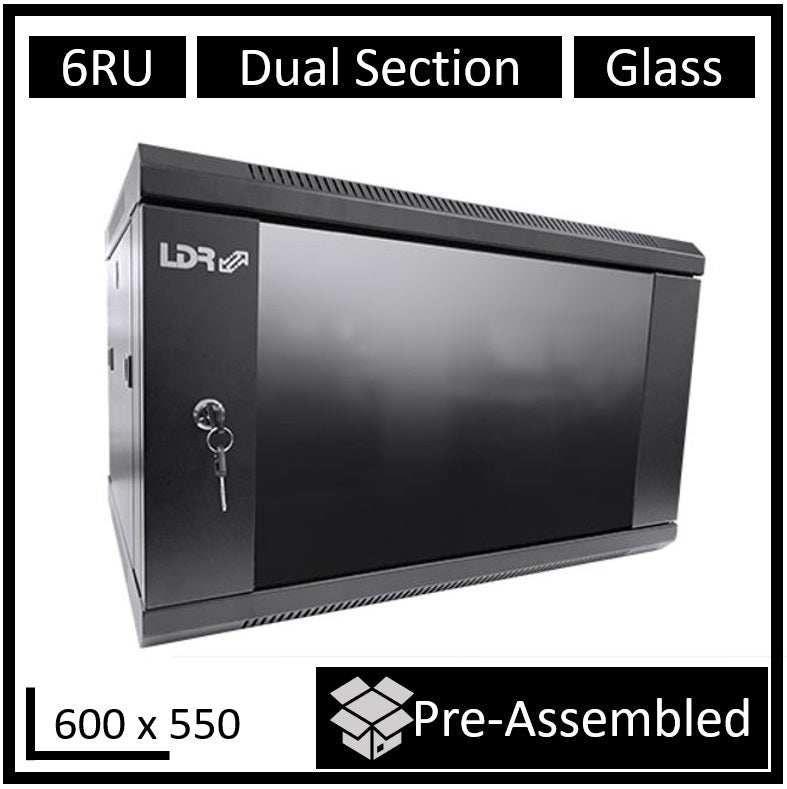

LDR Assembled 6U Hinged Wall Mount Cabinet (600mm x 550mm) Glass Door - Black Metal Construction - Top Fan Vents - Side Access Panels

Product details

Compare mounting compatibility, size range and load limits for your workspace.

Quick comparison

• Product: LDR Assembled 6U Hinged Wall Mount Cabinet (600mm x 550mm) Glass Door - Black Metal Construction - Top Fan Vents - Side Access Panels
• Product SKU: RCLDR-DS550-6U-A

Before you order

Confirm the device’s mounting pattern and weight, plus the desk or wall fixing requirements. Check the listed compatibility before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

LDR two-section hanging cabinet RCLDR-DS550-6U-A

The LDR two-section hanging cabinets are most often used in close circuit television, security alarm, and access control system installations, where quick and easy access to the back section of the cabinet is an important factor. Thanks to this, access to the back side of the mounted devices does not pose any difficulties. Data Sheet: Click Here FEATURES: •Side doors mounted on latches with a lock assembly option •A frame with a load capacity of 60kg •Protection class IP20 •Front door - glass SPECIFICATIONS: •Nominal height 6U •Total outer height 360mm •Outer width 600mm •Outer depth 550mm •Mounting depth 400mm •Colour Black •Maximum load capacity 60kg •Protection class IP20 •Front doors Glass with a lock •Back doors n/a •Side panels Full steel dismounted on latches with a lock assembly option •Shipping Dimensions: 635mm x 485mm x 210mm •Shipping Weight: 19kg •Carton:1pc/box
