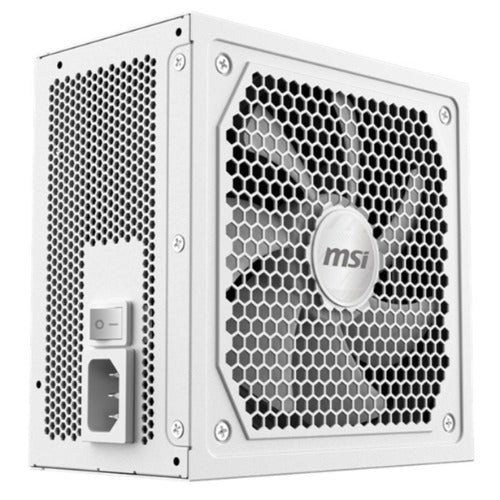

MSI MAG A1000GL PCIE5 ATX Power Supply Uni - White, 1000W, 80+ Gold, Fully Modular, PCIe5 600W, 135mm FDB Fan, Active PFC, 100-240V, 10yr wty, OCP/UVP

Product details

MSI MAG A1000GL PCIE5 ATX Power Supply Uni - White, 1000W, 80+ Gold, Fully Modular, PCIe5 600W, 135mm FDB Fan, Active PFC, 100-240V, 10yr wty, OCP/UVP The MAG A1000GL PCIE5 WHITE power supply provides 80 PLUS Gold-certified power efficiency, ATX 3.1 ready, and PCIe 5.1 GPU support, cooled by a 135 mm fluid dynamic bearing (FDB) fan for superior performance. Outfitted with a half-bridge LLC DC-to-DC topology, an extra-compact ATX frame, and a fully modular design, this PSU is ideal for spatially-efficient PCs requiring robust, no-nonsense performance. SPECIFICATIONS: Efficiency Rating 80 PLUS Gold (up to 90%) Modular Yes (fully modular) Fan Size 135 mm Fan Bearing Fluid Dynamic Bearing Dimensions (DxWxH) 150 x 150 x 86 mm PFC Type Active PFC Input Voltage Range 100-240V~ Power Watt 1000W Power Excursion 2000W (*up to 200% of the PSU's rated power for 100μs) Input Frequency Range 50-60Hz Protection OCP / OVP / OPP / OTP / SCP / UVP ATX (24 pin) 1 EPS (4+4 pin) 2 PCI-E 5.1 (16 pin) 1 (600W) PCI-E (6+2 pin) 4 SATA (15 pin) 12 PERIPHERAL (4 pin) 4 FDD (4 pin) 1
