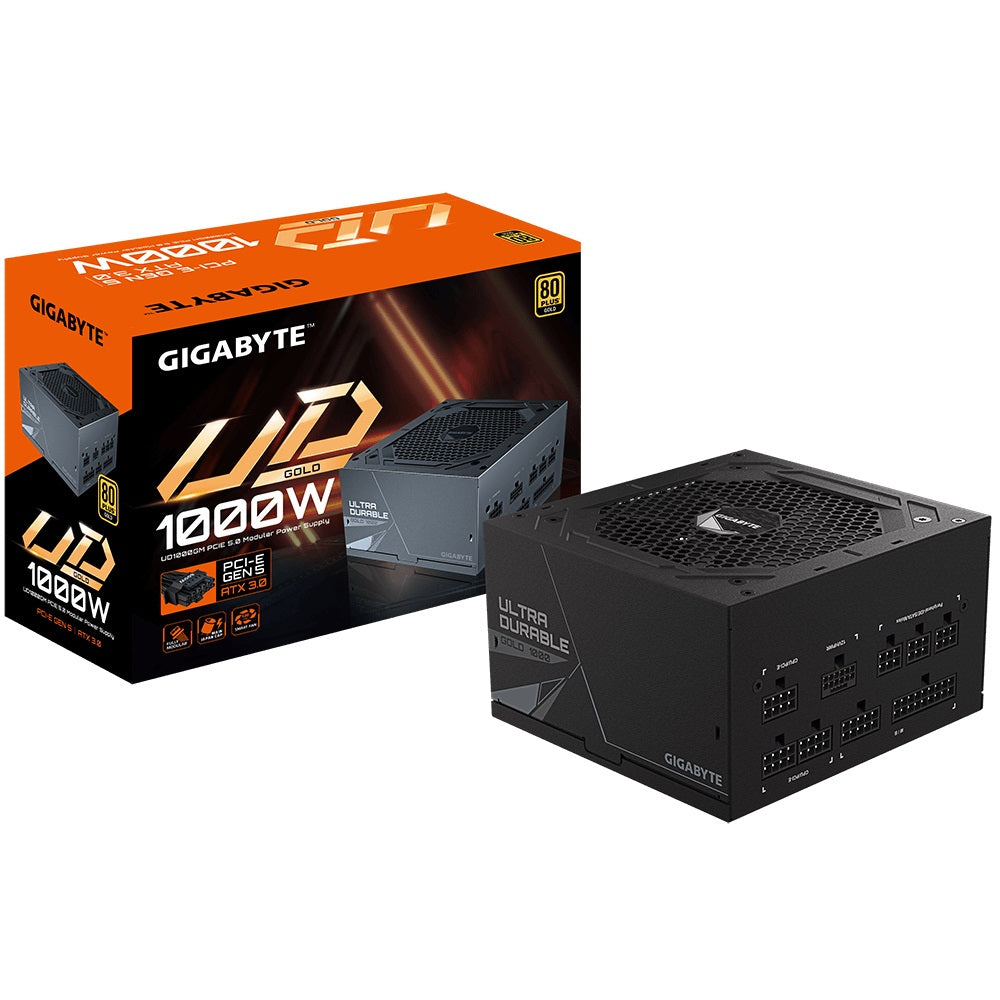

Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs
• Product SKU: PSG-UD1000GMPG5-2.0

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

Gigabyte UD1000GM PG5 2.0 1000W ATX PSU Power Supply 80+ Gold >90% 120mm Fan Black Flat Cables Single +12V >100K Hrs KEY FEATURE Ultra Durable Main Japanese capacitors Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection Support PCIe Gen 5.0 graphics cards Support Intel ATX 3.0 standard 80 PLUS Gold certified Fully modular design Compact design 10 years warranty (Adjusted according to different regions) SPECIFICATION: Model GP-UD1000GM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 1000W Dimension 150 x 140 x 86 mm Fan Type 120mm Hydraulic Bearing(HYB)fan 80 PLUS Gold Efficiency 90% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors: ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
