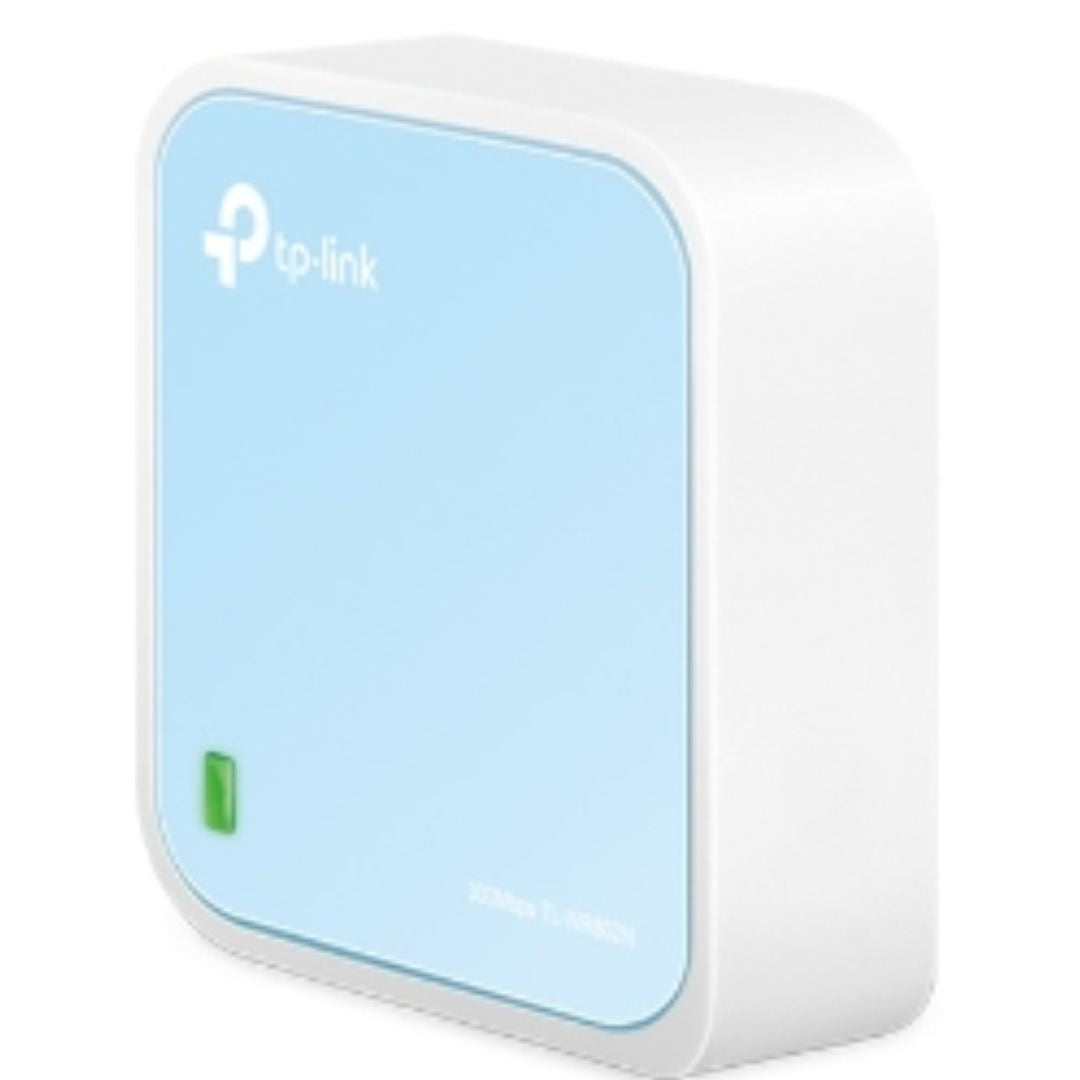

TP-Link TL-WR802N N300 Wireless N Nano Router 2.4GHz 300Mbps 1x100Mbps LAN/WAN 1xMicro USB 802.11bgn Built-in Antenna Pocket Size Travel Router

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: 300Mbps
• Wireless band: 2.4GHz
• Product SKU: NWTL-WR802N

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-WR802N N300 Wireless N Nano Router 2.4GHz (300Mbps) 1x100Mbps LAN/WAN 1xMicro USB 802.11bgn Onboard Antenna Pocket Size for Travel

300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling

Pocket-size – Ideal for home and travel use

Supports Router, Repeater, Client, AP and hotspot operation modes

Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation

Easy installation in minutes

HARDWARE FEATURES

Interface — 1 10/100Mbps WAN/LAN Port

1 Micro USB Port

1 Reset Button

Wireless Standards — IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) — 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)

Antenna Type — On-Board

WIRELESS FEATURES

Frequency — 2.4-2.4835GHz

Signal Rate — 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity — 270M: -65dBm@10% PER

130M: -70dBm@10% PER

108M: -82dBm@10% PER

54M: -73dBm@10% PER

11M: -82dBm@8% PER

6M: -86dBm@10% PER

1M: -90dBm@8% PER

Transmit Power — CE:

<20dBm(2.4GHz)

FCC:

<30dBm

Wireless Modes — Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode

Wireless Functions — Enable/Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security — 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

SOFTWARE FEATURES

Quality of Service — WMM, Bandwidth Control

WAN Type — Dynamic IP/Static IP/PPPoE/

PPTP/L2TP

Management — Access Control

Local Management

Remote Management

DHCP — Server, Client, DHCP Client List, Address Reservation

Port Forwarding — Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS — DynDns, Comexe, NO-IP

VPN Pass-Through — PPTP, L2TP, IPSec (ESP Head)

Access Control — Local Management Control, Host List, Access Schedule, Rule Management
