TP-Link TL-WPA4220 KIT 300Mbps AV600 Wi-Fi Powerline Extender Starter Kit 600Mbps HomePlug AV 300Mbps Wireless 2x100Mbps LAN 2.4GHz 802.11bgn 300m ran

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Product: TP-Link TL-WPA4220 KIT 300Mbps AV600 Wi-Fi Powerline Extender Starter Kit 600Mbps HomePlug AV 300Mbps Wireless 2x100Mbps LAN 2.4GHz 802.11bgn 300m ran
• Product SKU: NWTL-WPA4220KIT

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-WPA4220KIT 300Mbps AV600 Wi-Fi Powerline Extender Starter Kit 600Mbps HomePlug AV 300Mbps Wireless 2x100Mbps LAN 2.4GHz 802.11bgn 300m range

One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network

HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming

Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office

HARDWARE FEATURES

Plug Type — AU

Standards and Protocols — HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n

Interface — 2*10/100Mbps Ethernet Port

Button — Pair, Reset, Wi-Fi/Wi-Fi Clone

Power Consumption — Maximum: 7.608W (220V/50Hz)

Typical: 7.216W (220V/50Hz)

Standby: 4.610W (220V/50Hz)

LED Indicator — PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone

Dimensions ( W x D x H ) — TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)

TL-PA411: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)

Range — 300 Meters over electrical circuit

WIRELESS FEATURES

Frequency — 2.4-2.4835GHz

Signal Rate — 11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Reception Sensitivity — 270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Wireless Security — 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

Advanced Functions — Enable/DisableWireless Radio,WMM, Wireless Statistics

Transmission Power — CE:<20dBm(2.4GHz)

FCC:<30dBm

SOFTWARE

Modulation Technology — OFDM (PLC)

Encryption — Powerline Security:

128-bit AES

Wireless Security:

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

OTHERS

Certification — CE, RoHS

Package Contents — Package Contents:

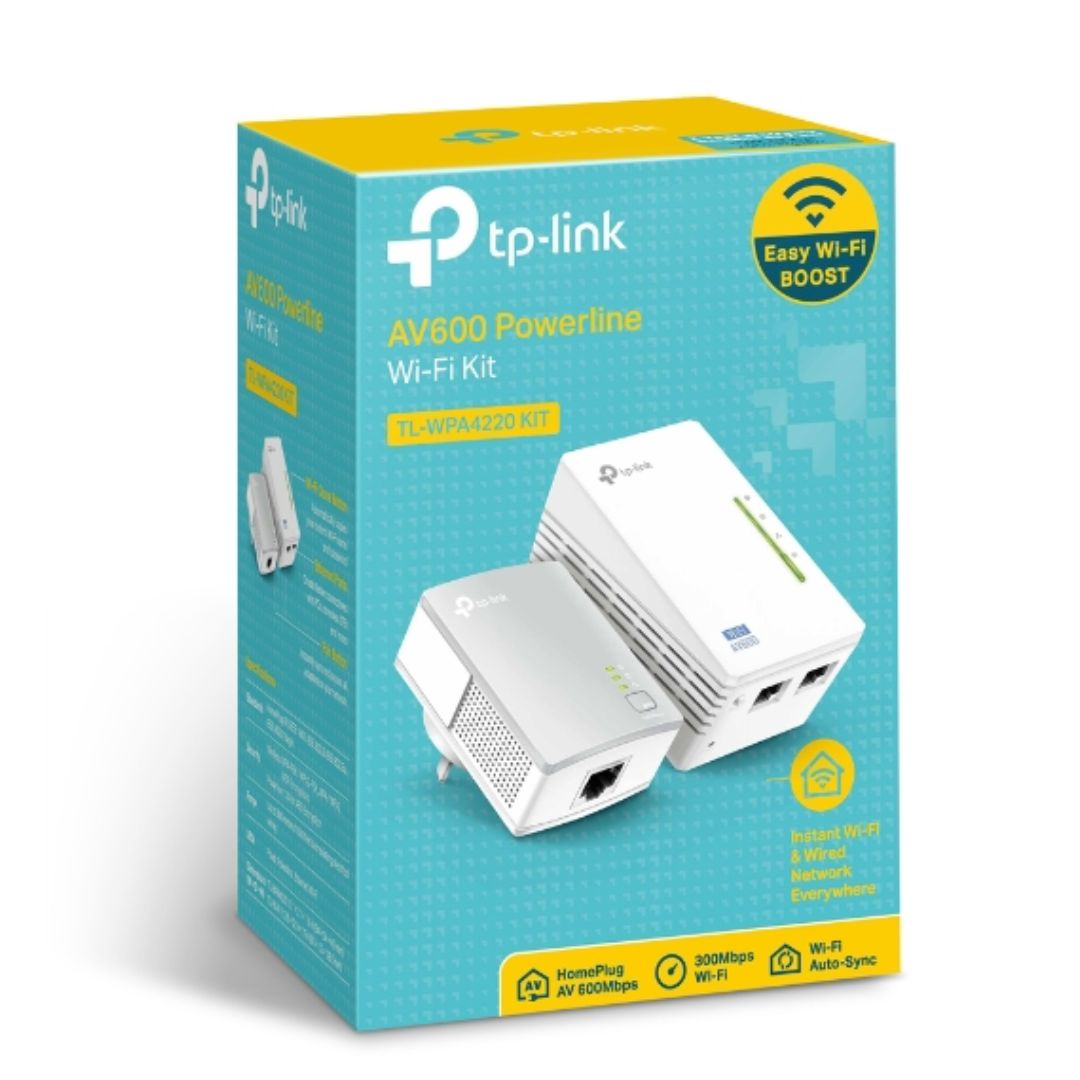

● AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA411

● Ethernet Cable × 2

● Quick Installation Guide

Certification:

CE, RoHS

System Requirements — Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
