TP-Link TL-WA801N 300Mbps Wireless N Access Point | WPA2

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Listed network standard or speed: 300Mbps
• Multiple Operation Modes
• WPA2
• Included Passive POE Injector
• Product SKU: NWTL-WA801N

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

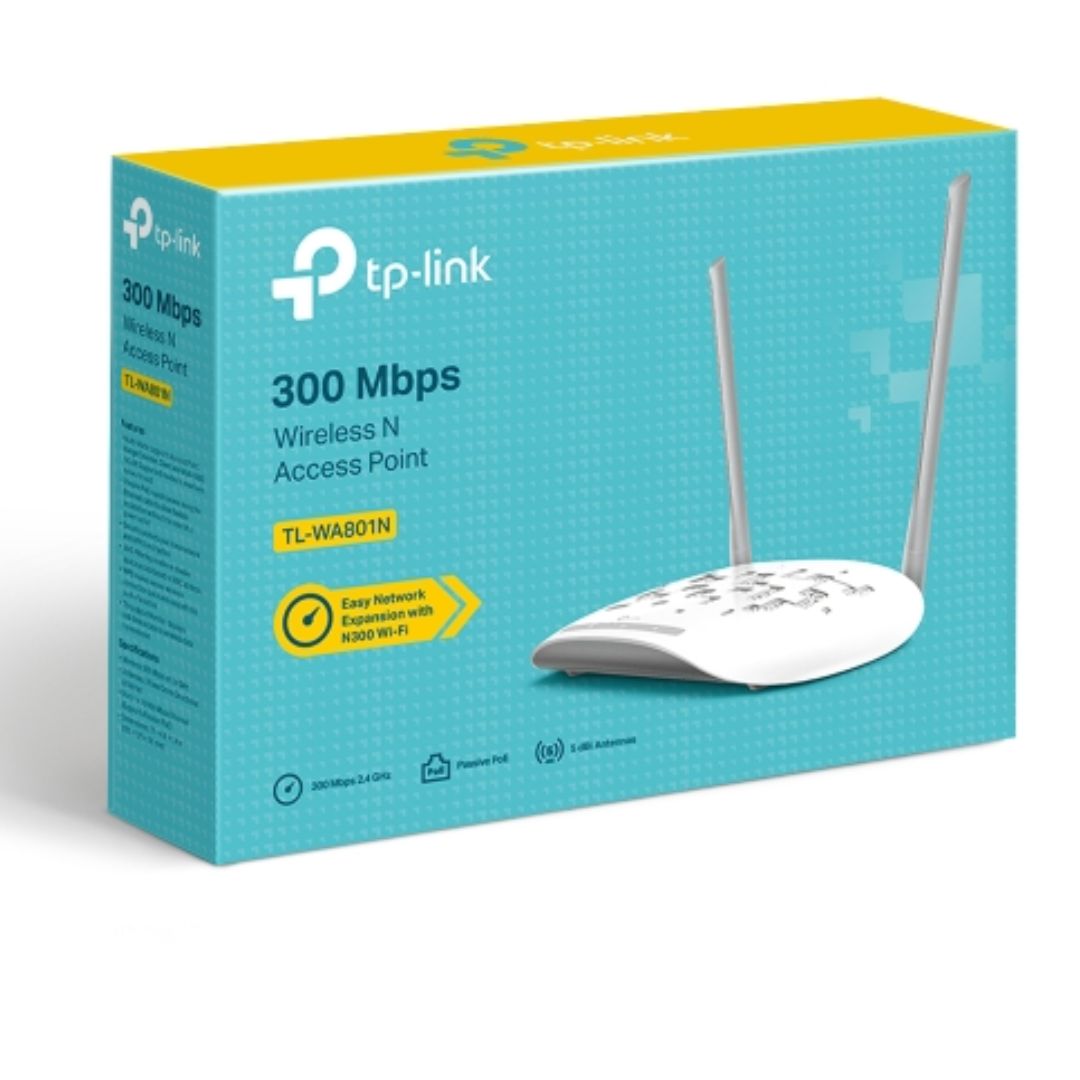

TP-Link TL-WA801N 300Mbps Wireless N Access Point

• — 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming

• — Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes

• — Protects your home network with WPA2 encryption and makes quick connection with the push of a button

• — Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector

HARDWARE FEATURES

Interface — 1× 10/100 M Ethernet Port(RJ45)

Support Passive PoE

Button — Power On/Off Button, WPS Button, Reset Button

External Power Supply — 9VDC / 0.6A

Wireless Standards — IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) — 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)

Antenna Type — 2 Fixed Omni-Directional Antennas

WIRELESS FEATURES

Frequency — 2.4 GHz

Signal Rate — 300 Mbps at 2.4 GHz

Reception Sensitivity — 11g 6Mbps: -90dBm

11g 54Mbps: -77dBm

11n HT20 MC7: -73dBm

11n HT40 MC7: -70dBm

Transmit Power — CE: <15dBm; FCC: <20dBm

Wireless Modes — AP Mode

Multi-SSID Mode

Client Mode

Range Extender Mode

Wireless Functions — Enable/Disable Wireless Radio, WMM, Short GI, AP

Isolation, Wireless Statistics, Throughput Monitor

Wireless Security — WEP, WPA/WPA2, WPA/WPA2-PSK encryptions

Quality of Service — WMM

Management — SNMP

Advanced Functions — Up to 30 meters Passive PoE is supported

OTHERS

Certification — CE, FCC, RoHS

Package Contents — Wireless Access Point TL-WA801N

Power Adapter

Passive PoE Power Injector

RJ45 Ethernet Cable

Quick Installation Guide

System Requirements — Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an Internet Service Provider (for Internet access)

Environment — Operating Temperature: 0°C~40°C (32°F ~104°F)

Storage Temperature: -40°C~70°C (-40°F ~158°F)

Operating Humidity: 10%~90% RH

Storage Humidity: 5%~90
