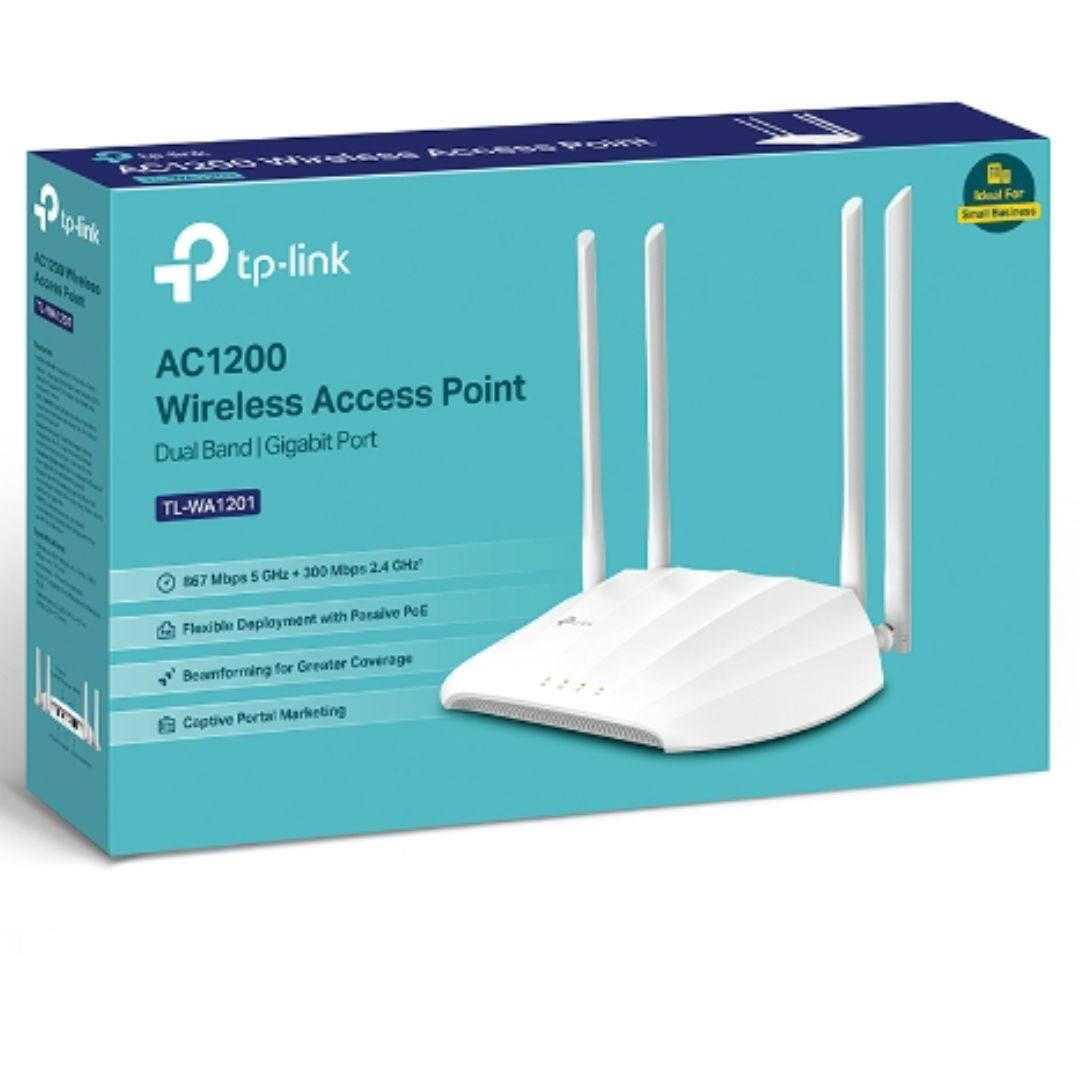

TP-Link TL-WA1201 AC1200 Wireless Access Point | AC1200 Dual-Band Wi-Fi

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• AC1200 Dual-Band Wi-Fi
• Passive POE
• Multiple Modes
• MU-MIMO
• Product SKU: NWTL-WA1201

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-WA801N 300Mbps Wireless N Access Point

• — AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.

• — Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.

• — Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

• — MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.

• — Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.

• — Captive Portal – Offers a designed portal page for heightened security and marketing.

HARDWARE FEATURES

Interface — 1× 10/100/1000 Mbps Ethernet Port

(Supports Passive PoE)

Button — Power On/Off Button, WPS Button, Reset Button

External Power Supply — 12V/1.5A

Wireless Standards — IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Dimensions ( W x D x H ) — 225×145.5×37 in (400×255×72 mm)

Antenna Type — 4 Fixed High Performance Antennas

WIRELESS FEATURES

Frequency — 2.4 GHz and 5 GHz

Signal Rate — 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity — 5 GHz:

11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm

11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm

11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm

11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:

11g 54Mbps: -78 dBm

11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm

11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power — CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)

FCC: <30dBm(2.4GHz&5GHz)

Wireless Modes — Access Point, Range Extender, Client, Multi-SSID

Wireless Functions — Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security — 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP — Server, DHCP Client List

Quality of Service — WMM

Advanced Functions — Captive Portal

OTHERS

Certification — CE, FCC, RoHS

Package Contents — Wireless Access
