TP-Link TL-SX105 5-Port 10G Desktop Switch | up to 100 Gbps switching capacity

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 5-Port
• Listed network standard or speed: 10G
• Product SKU: NWTL-SX105

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

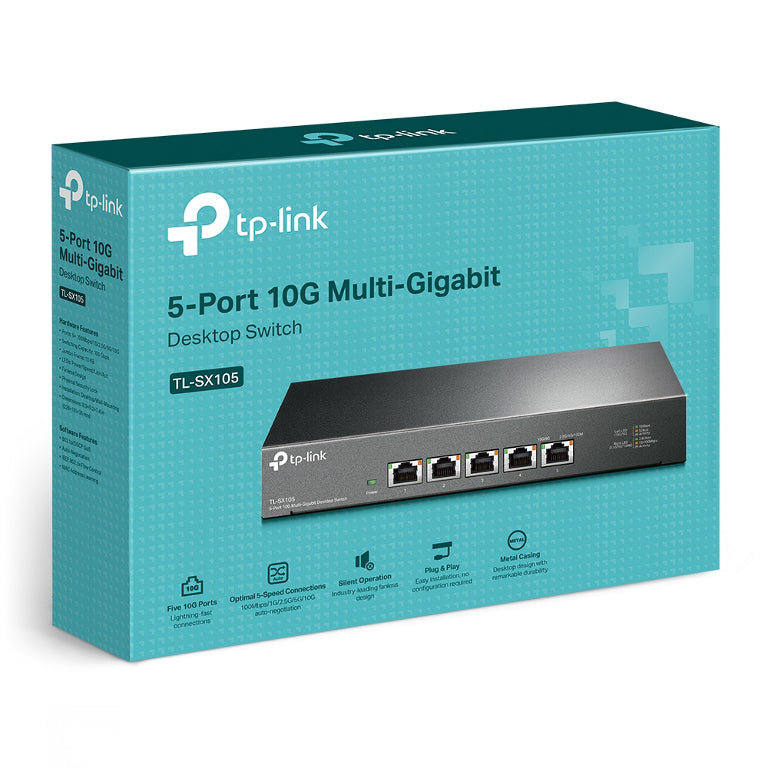

TP-Link TL-SX105 5-Port 10G Desktop Switch, up to 100 Gbps switching capacity, Auto-negotiation, Silent Operation, Metal Casing

5-Port 10G Desktop Switch

Five 10 Gbps Ports. 5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices and provide up to 100 Gbps of switching capacity.

Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.

Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.

Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.

Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.

Durable Metal Casing. Durable metal casing, desktop/wall-mounting, and professional heat dissipation design are well suited for different environments.

Plug and Play. Allows for easy deployment without the need for a technician.

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz

Interface — 5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity — Fanless

External Power Supply — External Power Adapter (Output: 12 VDC / 2.0 A)

LED Indicator — • System Power: 1

• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ) — 8.9×5.2×1.4 in (226×131×35 mm)

Max Power Consumption — 21.4 W

PERFORMANCE

Switching Capacity — 100 Gbps

Packet Forwarding Rate — 74.4 Mpps

MAC Address Table — 32 K

Packet Buffer Memory — 2 Mb

Jumbo Frame — 10 KB

SOFTWARE FEATURES

Advanced Features — • 802.3X Flow Control

• 802.1p/DSCP QoS

Transfer Method — Store and Forward

OTHERS

Certification — CE, FCC ,RoHS

Package Contents — • 5-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX105

• Power Cord

• Install
