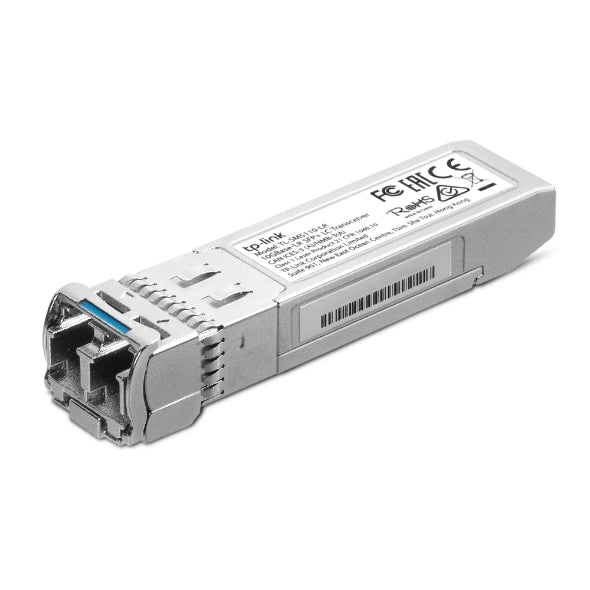

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Hot-Pluggable, Supports Digital Diagnostic Monitoring, SFP+ MSA Compatible, 10KM

Product details

Review the product details and listed configuration to match this item to your business requirements.

Quick comparison

• Supports Digital Diagnostic Monitoring
• SFP+ MSA Compatible
• 10KM
• Product SKU: NWTL-SM5110-LR

Before you order

Confirm the exact model, compatibility, included components and any installation or support requirements before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SM5110-LR 10GBase-LR SFP+ LC Transceiver Hot-Pluggable

• Supports Digital Diagnostic Monitoring
• SFP+ MSA Compatible
• 10KM • Single-mode SFP+ LC Transceiver • Hot-Pluggable with maximum flexibility • Supports Digital Diagnostic Monitoring (DDM) • Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA) • Compatible with switches with 10G SFP+ ports
• like JetStream TL-SG3428X
• TL-SG3428XMP
• and more. HARDWARE FEATURES DDM Yes SFP-MSA Yes Hot Swappable Yes TRANSCEIVER Standards and Protocols IEEE 802.3ae
• TCP/IP Wave Length 1310 nm Power Supply 3.3V Fiber Type 9/125um Single-Mode Max. Cable Length 10 km Data Rate 10 Gbps Port Type LC Duplex Safety Emission FCC
• CE Environment Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH
• Non-Condensing Storage Humidity: 5–90% RH
• Non-Condensing Product Width (W) mm 122.5 Product Depth (D) mm 81.5 Product Height (H) mm 38.5 Product Weight Kg 0.06
