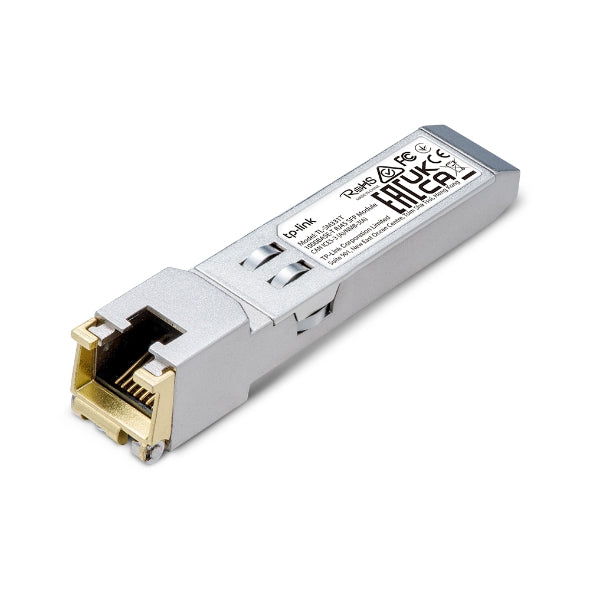

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module. 100m Reach Over UTP Cat 5e Or Above Cable, 1000BASE-T, TX Disable, Hot Swappable
TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module. 100m Reach Over UTP Cat 5e Or Above Cable, 1000BASE-T, TX Disable, Hot Swappable
Product details
Compare the connector types, cable length and supported interface with your equipment.
Quick comparison
- Length: 100m
- Cable standard: Cat 5e
- Product SKU: NWTL-SM331T
Before you order
Check both ends of the connection, required cable length and any bandwidth or power requirements. Confirm whether an active adapter is needed.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module • Support 1000BASE-T Operation in Host Systems • Support TX Disable function • For 100m Reach Over UTP Cat 5e or above Cable • Hot-Pluggable SFP Footprint Features • Commercial Product Operating Temperature Range: 0-70°C • Compliant with IEEE Std 802.3-2002 • Fully Metallic Enclosure for Low EMI • Low Power Dissipation (0.5 W Typical, 0.8 W Max) PACKAGE CONTENTS Package Contents • 1000BASE-T RJ45 SFP Module TL-SM331T • Installation Guide HARDWARE FEATURES Hot Swappable Yes TRANSCEIVER Standards and Protocols IEEE 802.3-2002 Power Supply 3.3V Max. Cable Length 100m (Cat 5e or above) Data Rate 1.25 Gbps Port Type 1× 1000 Mbps RJ45 Port Safety Emission FCC, CE Environment Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉)
