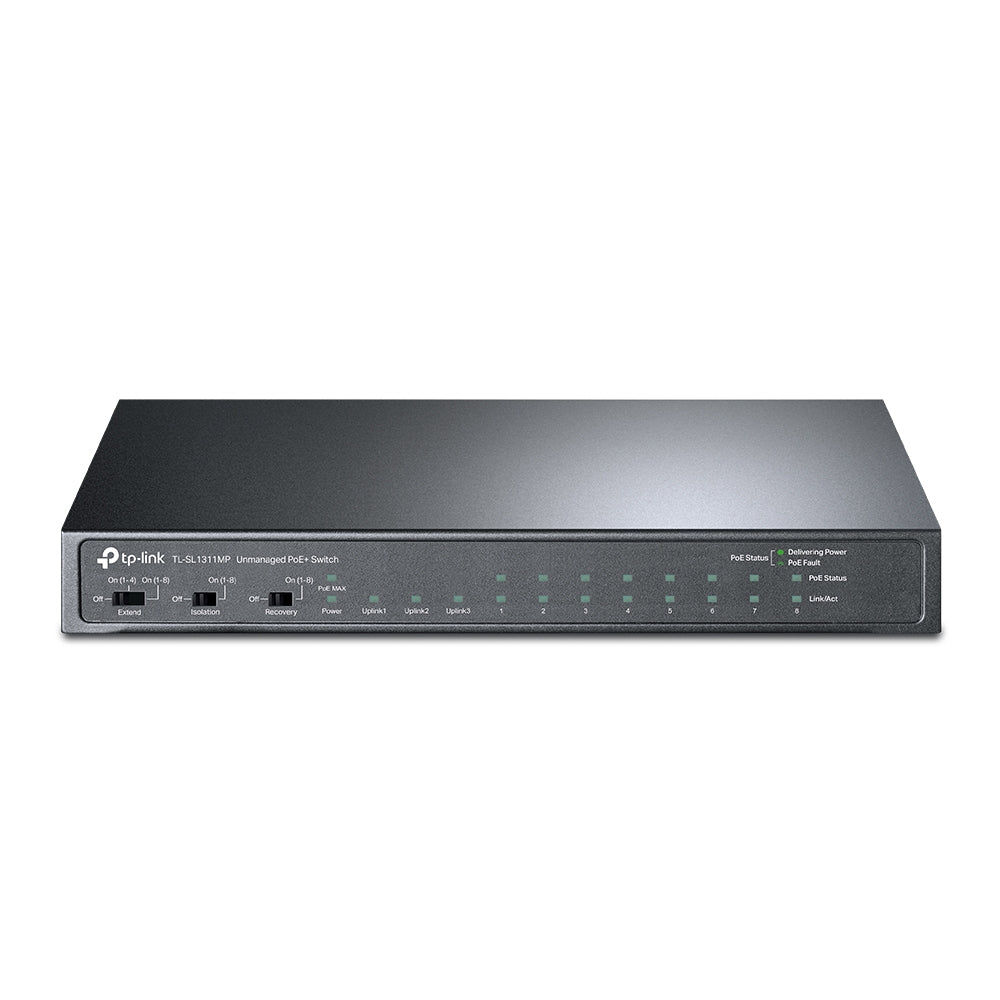

TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+, Extend Mode for 250m PoE Transmitting, Isolation Mode, PoE Aut
$150.00
ex GST
Skip to product information
TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+, Extend Mode for 250m PoE Transmitting, Isolation Mode, PoE Aut
$150.00
ex GST
In stockNeed volume-based pricing? Contact us
Product details
TP-Link TL-SL1311MP 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ • 8× 10/100 Mbps RJ45 Ports
- 2× Gigabit RJ45 Ports
- 1× Gigabit SFP Port • 8× PoE+ ports transfer data and power on individual cables • Works with IEEE 802.3af/at compliant PDs • Supports PoE Power up to 30 W for each PoE port • Supports PoE Power up to 124 W for 8 PoE ports* • Up to 250 m data and power transmitting range under Extend Mode** • Isolation Mode allows one-click client traffic separation for higher security and performance • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices • Fanless Design reduces power consumption and works silently in its location • Plug and play with no configuration required HARDWARE FEATURES Interface • 8× 10/100 Mbps 802.3af/at PoE+ Ports
- 2× Gigabit RJ45 Ports
- 1× Gigabit SFP Port • AUTO Negotiation • AUTO MDI/MDIX Network Media • 10BASE-T: UTP category 3
- 4
- 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5
- 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Physical Security Lock Yes External Power Supply External Power Adapter (Output: 53.5VDC / 2.43A) Packet Forwarding Rate 5.6544 Mpps PoE Ports (RJ45) • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 124 W Mac Address Table 2K Jumbo Frame 16 KB Switching Capacity 7.6 Gbps Dimensions ( W x D x H ) 209 × 126 × 26 mm Max Power Consumption • 5.95 W (220/50 Hz. no PD connected) • 140.92 W (220/50 Hz. with 124 W PD connected) Max Heat Dissipation • 20.29 BTU/h (no PD connected) • 480.54 BTU/h (220/50 Hz. with 124 W PD connected) SOFTWARE FEATURES Transmission Method Store-And-Forward Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8
- Up to 250 m PoE power supply and data transmission) • Isolation Mode
