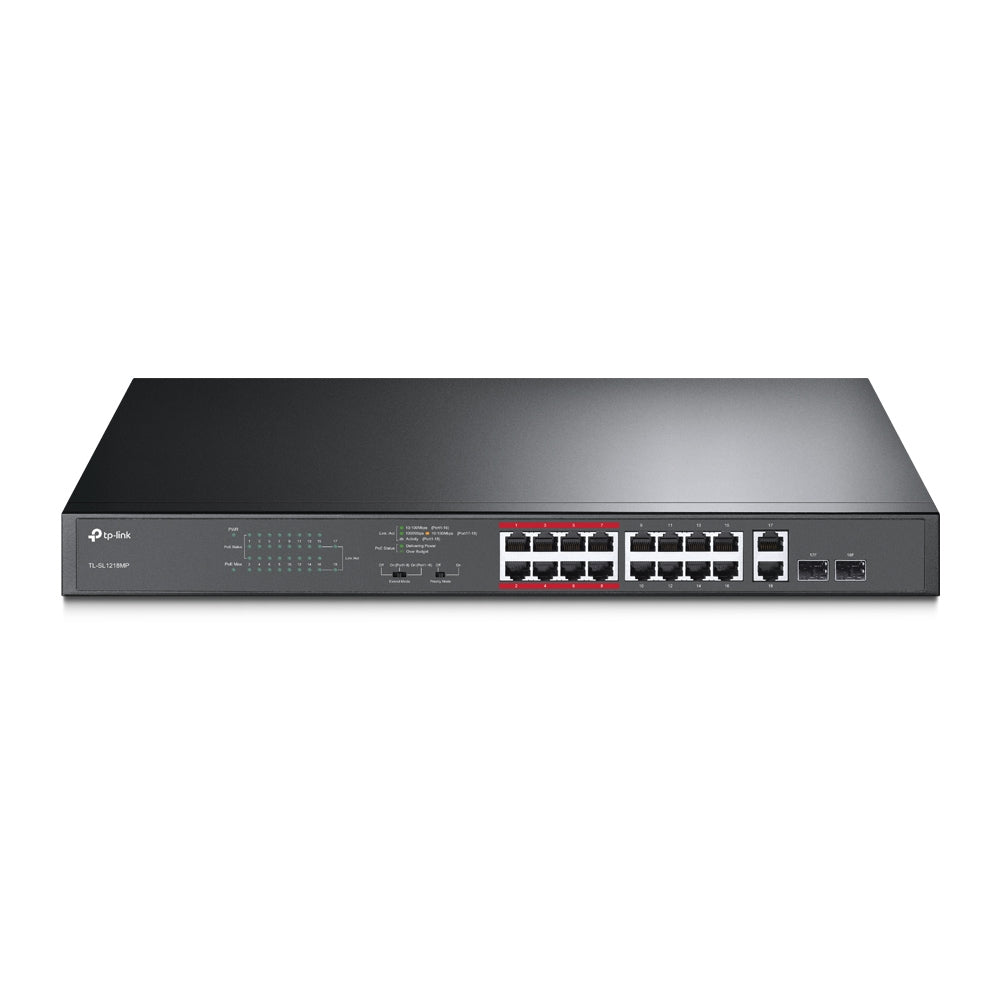

TP-Link TL-SL1218MP 16-Port 10/100Mbps PoE+ Switch, 16 10/100Mbps RJ45 Ports, 2 Gigabit RJ45 Ports, 2 Combo SFP Slots, 802.3at/af, 192W PoE Power, 1U

Product details

TP-Link TL-SL1218MP 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch 16 PoE+ 10/100Mbps RJ45 ports

• 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots Up to 250m data and power transmission under extend mode specially designed for surveillance system Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports Easy to use
• with no configuration and installation needed HARDWARE FEATURES Interface 16 PoE+ 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3
• 4
• 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5
• 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5
• 5e
• 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF
• SMF Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240V AC
• 50/60 Hz Backup Bandwidth 7.2 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W Mac Address Table 8K Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) Max Power Consumption 18.7 W (no PD connected) 217.2 W (with 192W PD connected) Max Heat Dissipation 63.9 BTU/h (no PD connected) 741.2 BTU/h (with 192W PD connected) SOFTWARE FEATURES Advanced Features Compatible with IEEE 802.3at/af compliant devices Port Priority Mode Extend Mode (Up to 250m PoE power supply and data transmission) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control Transmission Method Store-And-Forward
