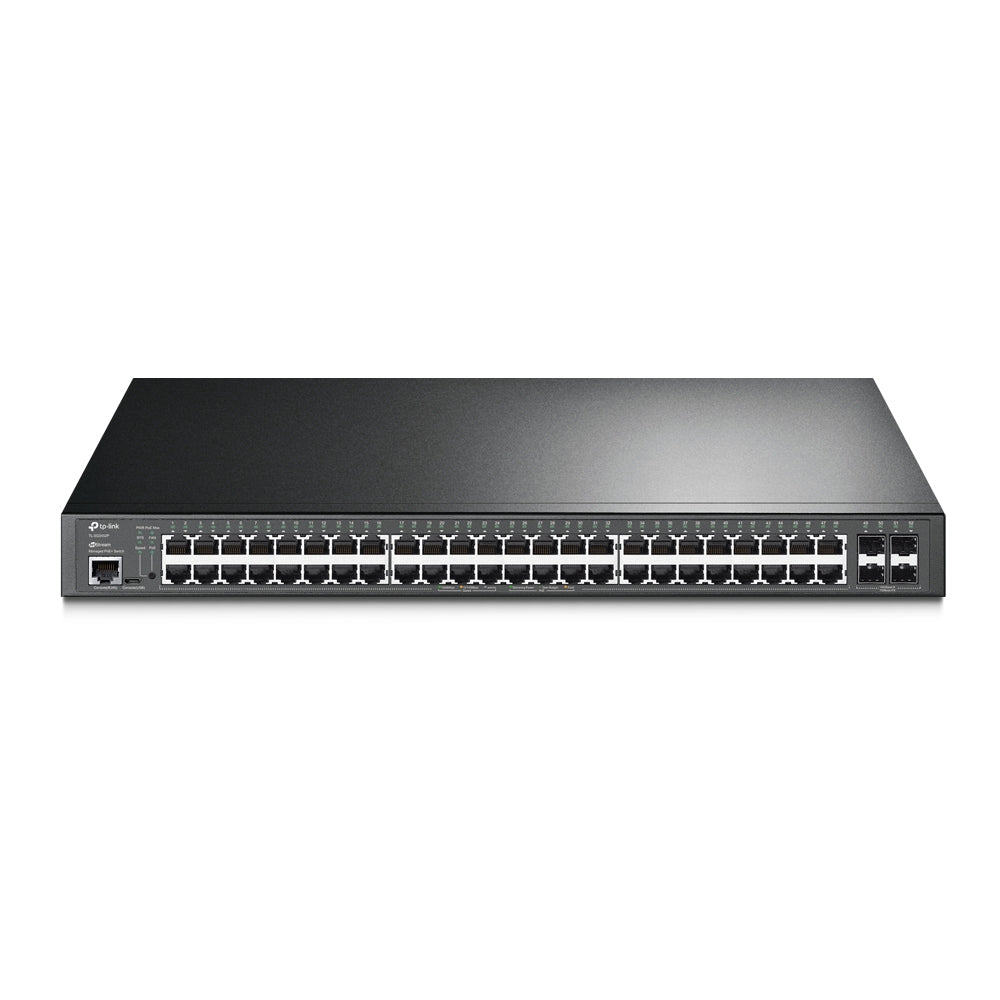

TP-Link SG3452P Omada 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+ | 802.1Q VLAN

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 52-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG3452P

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG3452P JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 384W PoE Budget, Integrated into Omada SDN

384 W PoE Budget: 48× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

Full Gigabit Ports: 48× gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

HARDWARE FEATURES

Interface — • 48× 10/100/1000 Mbps RJ45 Ports

• 4× Gigabit SFP Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity — 3

Power Supply — 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45) — • Standard: 802.3at/af compliant

• PoE+ Ports: 48 Ports, up to 30 W per port

• Power Budget: 384 W

Dimensions ( W x D x H ) — 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Mounting — Rack Mountable

Max Power Consumption — 52.53 W (110 V/60 Hz) (no PD connected)

485.4 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation — 179.13 BTU/hr (110 V/60 Hz) (no PD connected)

1656.19 BTU/hr (110 V/60 Hz) (with 384 W PD connected)

PERFORMANCE

Switching Capacity — 104 Gbps

Packet Forwarding Rate — 77.4 Mpps

MAC Address Table — 16 K

Jumbo Frame — 9 KB

SOFTWARE FEATURES

Quality of Service — • 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

• Bandwidth Control

- Port/Flow based Rating Limiting

• Smoother Performance

• Action
