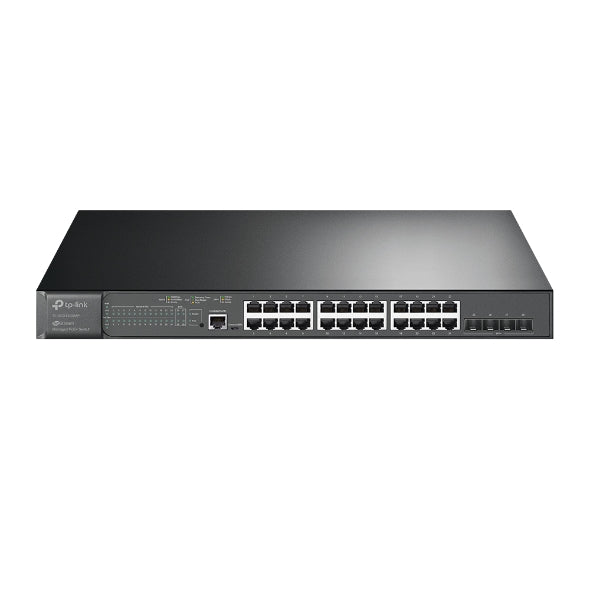

TP-Link SG3428XMP Omada 24-Port PoE+ Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 24-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG3428XMP

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+

• — 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.

• — 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

• — Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

• — Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

• — Static Routing: Helps route internal traffic for more efficient use of network resources.

• — Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

• — Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

• — Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES

Interface — • 24× 10/100/1000 Mbps RJ45 Ports

• 4× 10G SFP+ Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity — 2

Power Supply — 100-240 V AC~50/60 Hz

Dimensions ( W x D x H ) (440 × 330 × 44 mm)

Mounting — Rack Mountable

Max Power Consumption — 34.4 W (110V/60Hz) ( no PD device connected)

465.8 W (110V/60Hz) ( with 384 W PD device connected)

Max Heat Dissipation — 117.38 BTU/h (110 V/60 Hz) (no PD device connected)

1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)

PERFORMANCE

Switching Capacity — 128 Gbps

Packet Forwarding Rate — 95.23 Mpps

MAC Address Table — 16 K

Jumbo Frame — 9 KB

Quality of Service

• 8 priority queues

• 802.1p CoS/DSCP priority

• Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SP+WRR

• Bandwidth Control

- Port/Flow based Rating Limiting

• Smoother Performance

• Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark
