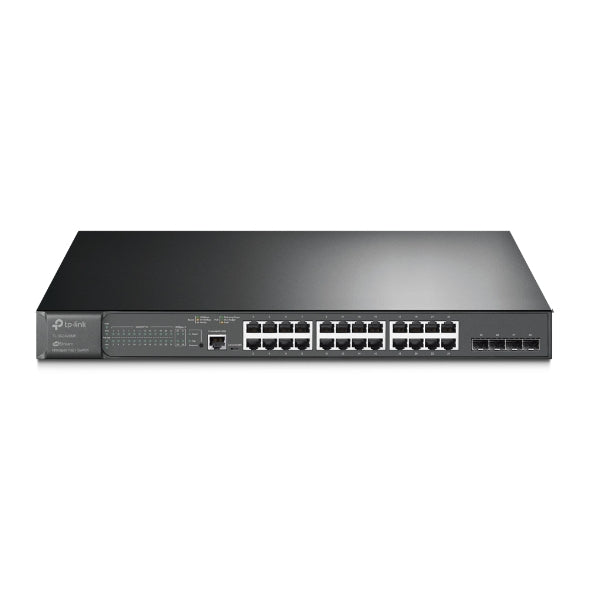

TP-Link SG3428MP Omada 28-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP Slots | 802.1Q VLA

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 28-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG3428MP

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+

• — 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.

• — Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.

• — Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralised Cloud Management, and Intelligent Monitoring.

• — Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

• — Static Routing: Helps route internal traffic for more efficient use of network resources.

• — Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

• — Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

• — Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES

Interface — • 24× 10/100/1000Mbps RJ45 Ports

• 4× Gigabit SFP Slots

• 1× RJ45 Console Port

• 1× Micro-USB Console Port

Fan Quantity — 2

Power Supply — 100-240 V AC~50/60 Hz

PoE+ Ports(RJ45) — • Standard: 802.3at/af compliant

• PoE+ Ports: 24 Ports, up to 30 W per port

• Power Budget: 384 W

Dimensions ( W x D x H ) — 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)

Mounting — Rack Mountable

Max Power Consumption — • 31.0 W (110 V/60 Hz) (no PD connected)

• 463.8 W (110 V/60 Hz) (with 384 W PD connected)

Max Heat Dissipation — • 105.78 BTU/h (110 V/60 Hz) (no PD connected)

• 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)

PERFORMANCE

Switching Capacity — 56 Gbps

Packet Forwarding Rate — 41.66 Mpps

MAC Address Table — 8K

Jumbo Frame — 9 KB
