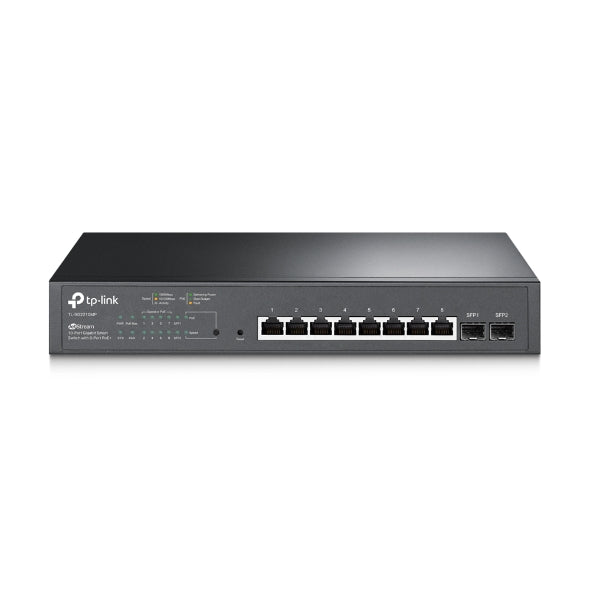

TP-Link SG2210MP 10-Port Gigabit Smart Switch with 8-Port PoE+ 1xFan 14.9Mpps Support Omada SDN, 802.1p CoS/DSCP QOS, IGMP Snoop Rack Mountable

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 10-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG2210MP

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ With Omada SDN Supported

• — Features 8 802.3af/at compliant PoE+ ports, with total PoE power budget of 150 W and useful PoE power management features

• — Omada SDN platform integration provides 100% centralised cloud management to create a highly scalable network

• — Gigabit Ethernet connections on all ports provide full speed of data transferring

• — Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication

• — L2/L3/L4 QoS and IGMP snooping optimise voice and video applications

• — WEB/CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

Interface — • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)

• 2× 100/1000 Mbps SFP Slots

Network Media — • 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)

• 100BASE-FX: MMF, SMF

• 1000BASE-X: MMF, SMF

Fan Quantity — 1

Physical Security Lock — Yes

PoE+ Ports(RJ45) — • Standard: 802.3at/af compliant

• PoE+ Ports: 8 Ports

• Power Supply: 150 W

Dimensions ( W x D x H ) (294 x 180 x 44 mm)

Mounting — Rackmount/Desktop

Max Power Consumption — • 12.2 W (110 V / 60 Hz with no PD connected)

• 173.9 W (110 V / 60 Hz with 150 W PD connected)

Max Heat Dissipation — • 41.63 BTU/h (with no PD connected)

• 539.35 BTU/h (with 150 W PD connected)

PERFORMANCE

Switching Capacity — 20 Gbps

Packet Forwarding Rate — 14.9 Mpps

MAC Address Table — 8K

Packet Buffer Memory — 4.1 Mbit

Jumbo Frame — 9 KB
