TP-Link SG2008 JetStream 8-Port Gigabit Smart Switch PORT: 8× Gigabit RJ45 Ports: Desktop Steel Case, Static Routing,Omada

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 8-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG2008

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

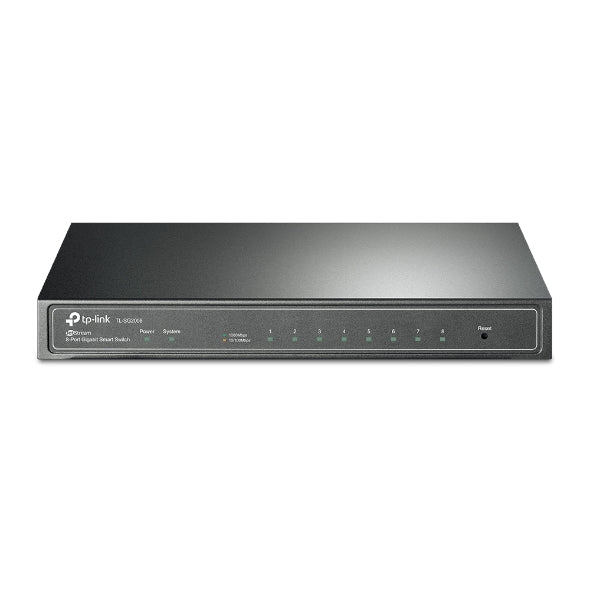

TP-Link TL-SG2008 JetStream 8-Port Gigabit Smart Switch

• — Full Gigabit Ports: 8× gigabit RJ45 ports provide high-speed connections.

• — Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.

• — Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

• — Robust Security Strategies: 802.1Q VLAN, ACL, Port Security, Storm Control, and more.

• — Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

• — Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab,

IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,

IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface — 8 10/100/1000Mbps RJ45 Ports

(Auto-Negotiation/Auto MDI/MDIX)

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable

(maximum 100m)

Fan Quantity — Fanless

Power Supply — 12 VDC/1 A

External Adapter or

Obtain Power from

PoE Source

Power Consumption — 6.4 W (220 V/50 Hz)

Dimensions ( W x D x H ) — 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PERFORMANCE

Bandwidth/Backplane — 16 Gbps

Packet Forwarding Rate — 11.9 Mpps

MAC Address Table — 8K

Jumbo Frame — 9 KB

SOFTWARE FEATURES

Quality of Service — • 802.1p CoS/DSCP priority

• 8 priority queues

• Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

• Queue Weight Config

• Bandwidth Control

- Port/Flow based Rating Limit

• Smoother Performance

• Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control
