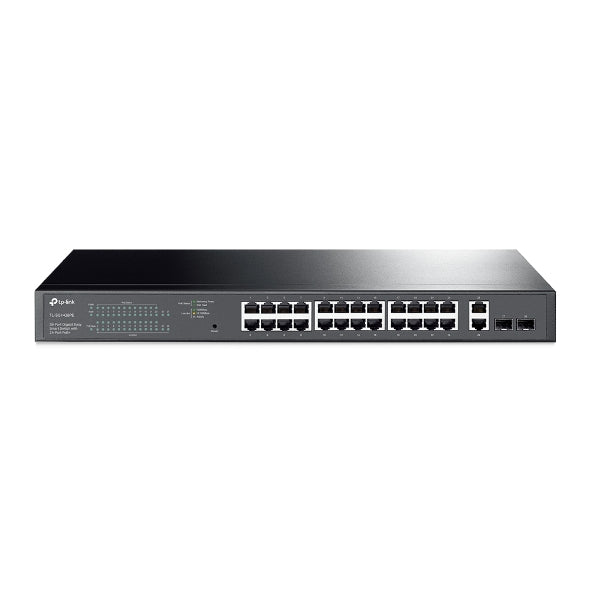

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ 32xVLAN 56Gbps Switching Capacity Rack Mountable

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 28-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG1428PE

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG1024DE 24-Port Gigabit Desktop/Rackmount Easy Smart Switch energy-efficient L2 Features Supports MAC 128xVLAN 48Gbps Switching Capacity

TP-Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

• — 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots

• — PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems

• — Priority Mode helps to guarantee the quality of sensitive application like video monitoring

• — PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices

• — QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV

• — Intelligent power management can protect the switch from overload

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface — 26 10/100/1000 Mbps RJ45 Ports

2 Gigabit SFP Ports

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity — 2 Fans

Physical Security Lock — Yes

Power Supply — 100-240V AC, 50/60 Hz

PoE+ Ports(RJ45) — Standard: 802.3at/802.3af compliant

PoE+ Ports: 24 Ports

Power Supply: 250 W

Dimensions ( W x D x H ) — 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)

Mounting — Rack Mountable

Max Power Consumption — 27 W (220/50Hz. no PD connected)

304.7 W (220/50Hz. with 250 W PD connected)

Max Heat Dissipation — 92.07 BTU/h (no PD connected)

1039.03 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity — 56 Gbps

Packet Forwarding Rate — 41.7 Mbps

MAC Address Table — 8K

Packet Buffer Memory — 4.1 Mbit

Jumbo Frame — 9 KB

SOFTWARE FEATURES

Quality of Service — Support Port-based 802.1p/DSCP priority
