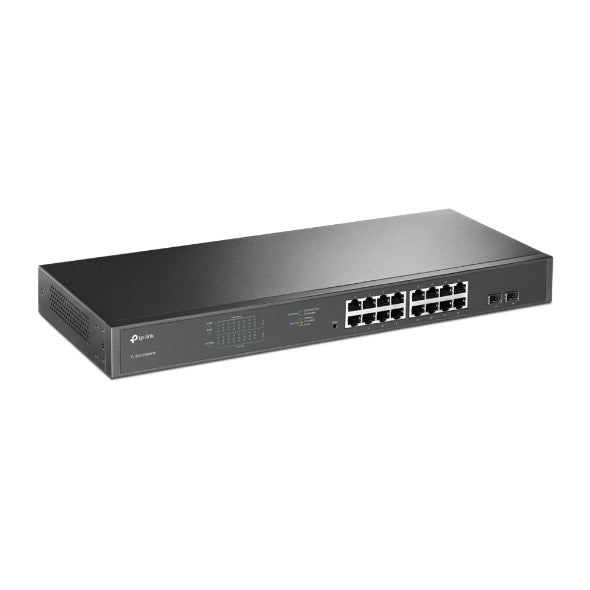

TP-Link TL-SG1218MPE 16-Port Gigabit PoE+ Easy Smart Switch | 16 Gigabit RJ45 Ports | 2 SFP Slots

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 16-Port
• Listed network standard or speed: Gigabit
• Listed PoE standard: 802.3at/af
• Product SKU: NWTL-SG1218MPE

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

16 10/100/1000Mbps RJ45 Ports PoE/PoE+ Switch

PoE power budget is up to 192W, making it ideal for small to medium business surveillance system

Port Priority is able to guarantee the quality of sensitive application like video monitor

Intelligent power management can protect the switch from overload

QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface — 16 PoE+ 10/100/1000Mbps RJ45 Ports

2 Fiber Ports

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity — 2 Fans

Physical Security Lock — Yes

Power Supply — 100-240V AC, 50/60 Hz

Backup Bandwidth — 7.2 Gbps

PoE+ Ports(RJ45) — Standard: 802.3at/802.3af compliant

PoE Ports: Port1- Port16

PoE Power Budget: 192W

Mac Address Table — 8K

Dimensions ( W x D x H ) — 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)

Mounting — Rack Mountable

Max Power Consumption — 18.73 W (220/50Hz. no PD connected)

217.22 W (220/50Hz. with 192W PD connected)

Max Heat Dissipation — 63.89 BTU/h (no PD connected)

741.15 BTU/h (with 192W PD connected)

PERFORMANCE

Switching Capacity — 36 Gbps

Packet Forwarding Rate — 23.8 Mbps

MAC Address Table — 8K

Packet Buffer Memory — 4.1 Mbit

Jumbo Frame — 9 KB
