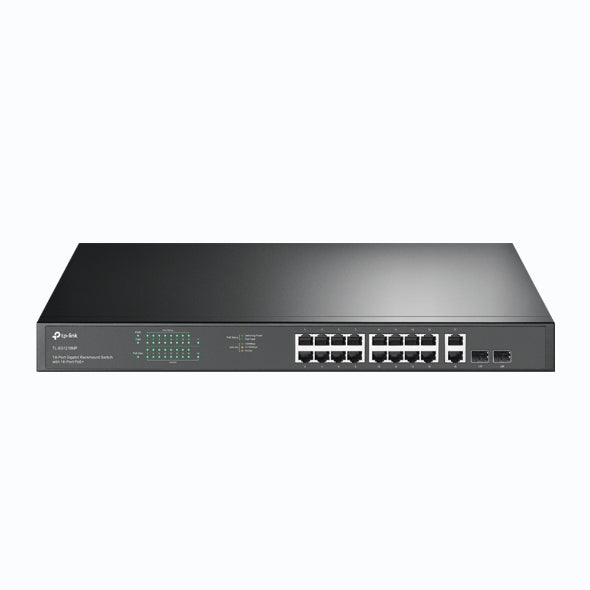

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch With 16 PoE+ 2 SFP Slots | 16× Gigabit PoE+ Ports | 2× Gigabit Non-PoE Ports

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 18-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG1218MP

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+

• — 16× gigabit PoE+ RJ45 ports, 2× gigabit non-PoE RJ45 ports, and 2× combo gigabit SFP slots

• — High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

• — Working with IEEE 802.3af/at compliant PDs

• — Plug and play, with no configuration and installation needed

• — 802.1p/DSCP QoS enable smooth latency-sensitive traffic

• — Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50 ℃)

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface — • 16× PoE+ gigabit RJ45 ports

• 2× gigabit non-PoE RJ45 ports

• 2× combo gigabit SFP slots

Network Media — • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

• EIA/TIA-568 100Ω STP (maximum 100m)

• 1000BASE-X MMF, SMF

Fan Quantity — 2

Physical Security Lock — Yes

Power Supply — 100–240 VAC, 50/60 Hz

PoE+ Ports(RJ45) — • Standard: 802.3at/802.3af compliant

• PoE Ports: Ports 1–16

• PoE Power Budget: 250 W

Dimensions ( W x D x H ) — 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm)

Mounting — Rack Mountable

Max Power Consumption — • 21.4 W (220/50 Hz. no PD connected)

• 286.64 W (220/50 Hz. with 250 W PD connected)

Max Heat Dissipation — • 72.97 BTU/h (no PD connected)

• 977.44 BTU/h (with 250 W PD connected)

PERFORMANCE

Switching Capacity — 36 Gbps

Packet Forwarding Rate — 26.78 Mbps

MAC Address Table — 8K

Packet Buffer Memory — 4.1 Mbit

Advanced Functions — • Compatible With IEEE 802.3af/at Compliant PDs

• 802.1p/DHCP QoS

• Mac Address Auto-Learning And Auto-Aging

• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame — 10 KB
