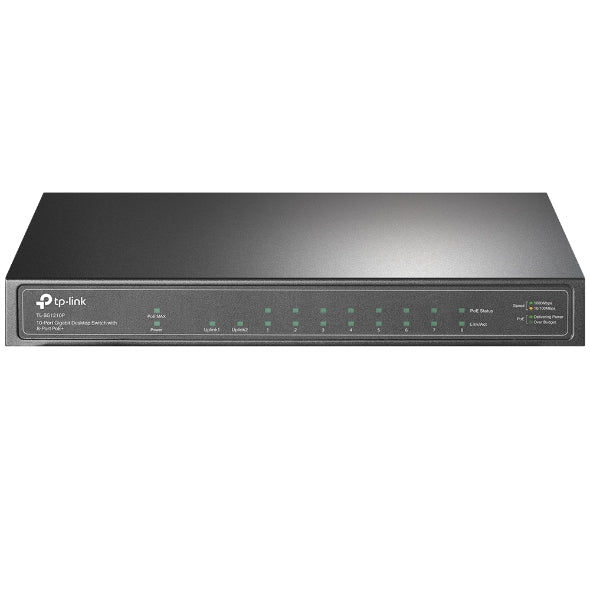

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+ IGMP Snooping 1 Gigabit SFP Slot, Fanless

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 10-Port
• Listed network standard or speed: Gigabit
• Product SKU: NWTL-SG1210P

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

10-Port Gigabit Desktop Switch with 8-Port PoE+

9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port

With 8 PoE+ ports, transfers data and power on one single cable

Working with IEEE 802.3af/at compliant PDs, expands home and office network

802.1p/DSCP QoS enable smooth latency-sensitive traffic

High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports

Easy to use, with no configuration and installation needed

HARDWARE FEATURES

Interface — 8 PoE+ 10/100/1000Mbps RJ45 Ports

1 10/100/1000Mbps RJ45 Port

1 Gigabit SFP Slot

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity — Fanless

Physical Security Lock — Yes

Power Supply — External Power Adapter(Output: 53.5VDC / 1.31A)

Backup Bandwidth — 20 Gbps

PoE+ Ports(RJ45) — Standard: 802.3at/802.3af compliant

PoE Ports: Port1- Port 8

PoE Power Budget: 63W

Mac Address Table — 4K

Dimensions ( W x D x H ) — 209 × 126 × 26 mm

Max Power Consumption — 7.11 W (220/50Hz. no PD connected)

78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation — 24.25 BTU/h (no PD connected)

266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES

Advanced Features — Compatible With IEEE 802.3af/at Compliant PDs

EEE802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method — Store-And-Forward

OTHERS

Certification — CE, FCC, RoHS

Package Contents — TL-SG1210P, Power Adapter, Installation Guide

Environment — Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing
