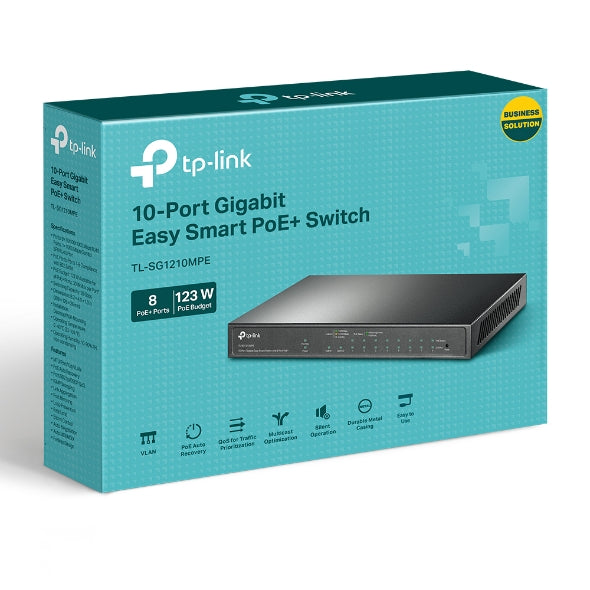

TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP S
TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+PORT: 8× Gigabit PoE+ Ports, 2x Gigabit Non-PoE Ports, 1× Combo Gigabit SFP S
Product details
Compare the listed ports, connection standards and management requirements for your network.
Quick comparison
- Ports: 10-Port
- Listed network standard or speed: Gigabit
- Product SKU: NWTL-SG1210MPE
Before you order
Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
• — 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
• — Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
• — Supports PoE power up to 123 W for all PoE ports*
• — Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery
• — Simple network set-up on top of plug-and-play connectivity
• — Web-based user interface and Easy Smart Configuration Utility simplify configuration
• — Fanless design lowers energy consumption and eliminates operating noise
HARDWARE FEATURES
Standards and Protocols — IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface — 9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps Combo SFP/RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX
Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity — Fanless
Power Supply — External Power Adapter (Output: 53.5 VDC/2.43 A)
PoE Ports (RJ45) — Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
PoE Power Budget: 123 W
Dimensions ( W x D x H ) — 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption — 7.66 W (220V / 50Hz with no PD connected)
141.54 W (220V / 50Hz with 123 W PD connected)
Max Heat Dissipation — 26.12 BTU/h (220V / 50Hz with no PD connected)
482.65 BTU/h (220V / 50Hz with 123 W PD connected)
PERFORMANCE
Switching Capacity — 20 Gbps
Packet Forwarding Rate — 14.88 Mpps
MAC Address Table — 4 K
Jumbo Frame — 16 KB
SOFTWARE FEATURES
Quality of Service — Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features — IGMP Snooping V1/V2/V3
Static Link Agg
