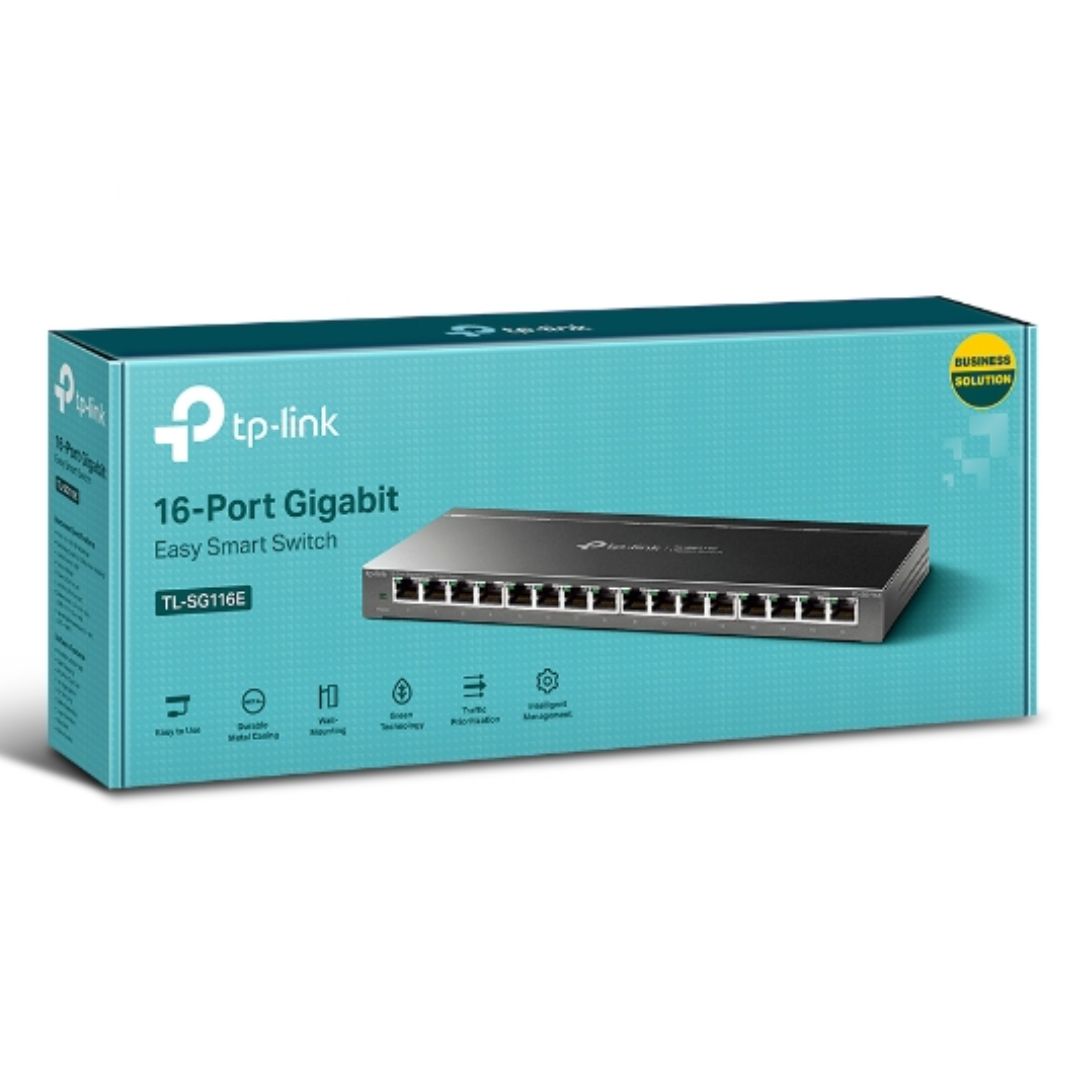

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
$118.00
ex GST
Skip to product information
TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
$118.00
ex GST
In stockNeed volume-based pricing? Contact us
Product details
TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop/Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless 16 10/100/1000Mbps RJ45 ports Plug and play
- with no configuration required Durable metal casing of superior quality and professional appearance Intelligent management via a web user interface and downloadable utility Green technology reduces power consumption HARDWARE FEATURES Standards and Protocols IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1q
- IEEE 802.1p Interface 16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX Network Media 10BASE-T: UTP category 3
- 4
- 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5
- 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5
- 5e
- 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity Fanless Power Supply External Power Adapter(Output: 9VDC/0.6A) Power Consumption Maximum: 9.27W (220V/50Hz) Dimensions ( W x D x H ) 11.3*4.4*1.0 in. (286*111.7*25.4 mm) PERFORMANCE Switching Capacity 32Gbps Packet Forwarding Rate 23.81Mpps MAC Address Table 8K Packet Buffer Memory 4.1Mb Jumbo Frame 9KB SOFTWARE FEATURES Quality of Service Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control L2 Features IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN Transmission Method Store-And-Forward
