TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE, 55W IEEE 802.3af, Fanless, VLAN Features

Product details

Compare the listed ports, connection standards and management requirements for your network.

Quick comparison

• Ports: 8-Port
• Listed network standard or speed: Gigabit
• Listed PoE standard: 802.3af
• Product SKU: NWTL-SG108PE

Before you order

Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

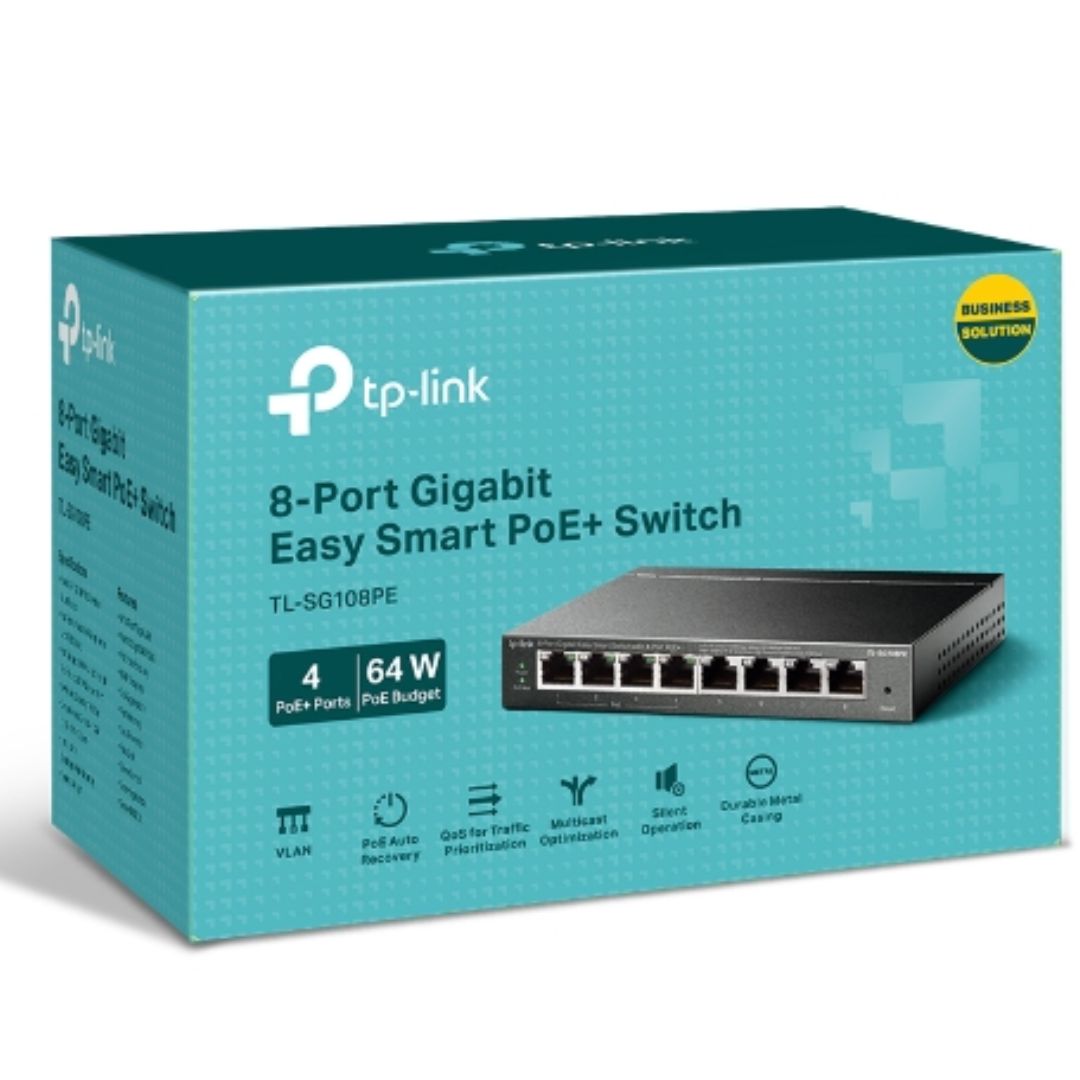

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch

8 10/100/1000Mbps RJ45 ports

With 4 PoE ports, data and power can be transferred on one single cable

Provides network monitoring, traffic prioritization and VLAN features

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

What This Product Does

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch.

It is designed specically for small businesses that require simple network management and PoE function.

The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones.

Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS.

Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface — 8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity — Fanless

Power Supply — External Power Adapter(Output: 48VDC / 1.25A)

Power Consumption — Maximum (PoE on): 65.2W (220V/50Hz)

Maximum (PoE off): 5.2W (220V/50Hz)

PoE+ Ports(RJ45) — Standard: 802.3 af compliant

PoE Ports: Port 1- Port 4

PoE Power Budget: 55W

PERFORMANCE

Switching Capacity — 16Gbps

Packet Forwarding Rate — 11.9Mpps

MAC Address Table — 4K

Packet Buffer Memory — 1.5Mb
