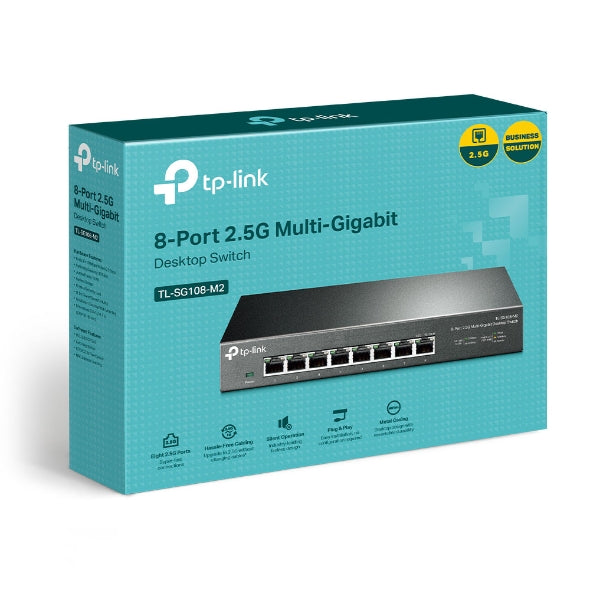

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch, Up To 40G Switching Capacity, Connects 2.5G NAS/Server, 2.5G WiFi 6 AP, 4K Video, Wall Mountable, 5YW

Product details

Compare mounting compatibility, size range and load limits for your workspace.

Quick comparison

• Up To 40G Switching Capacity
• Connects 2.5G NAS/Server
• 2.5G WiFi 6 AP
• 4K Video
• Product SKU: NWTL-SG108-M2

Before you order

Confirm the device’s mounting pattern and weight, plus the desk or wall fixing requirements. Check the listed compatibility before ordering.

Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.

Full product details

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch

• — Eight 2.5 Gbps Ports. 8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.

• — Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.

• — Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

• — Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.**

• — Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.

• — Plug and Play. Allows for easy deployment without the need for a technician.

• — Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

HARDWARE FEATURES

Standards and Protocols — IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface — 8× 100Mbps/1Gbps/2.5Gbp Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity — Fanless

External Power Supply — External Power Adapter (Output: 12 VDC / 1.5 A)

LED Indicator — • System Power: 1

• Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ) — 8.9×5.2×1.4 in (226×131×35 mm)

Max Power Consumption — 15.65 W

Max Heat Dissipation — 53.40 BTU/h

PERFORMANCE

Switching Capacity — 40 Gbps

Packet Forwarding Rate — 29.8 Mpps

MAC Address Table — 16 K

Packet Buffer Memory — 1.5 Mb

Jumbo Frame — 10 KB

SOFTWARE FEATURES

Advanced Features — • 802.3X Flow Control

• 802.1p/DSCP QoS

Transfer Method — Store and Forward

OTHERS

Certification — CE, FCC ,RoHS

Package Contents — • 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2

• Power Adapter

• Installation Guide

• Rubber Feet

Environment — • Operating Temperature: 0–40 °C (32–104 °F)

• Storage Temperature: -40–70 °C (-40–158 °F)

• Operating Humidity: 10–90% RH non-c
