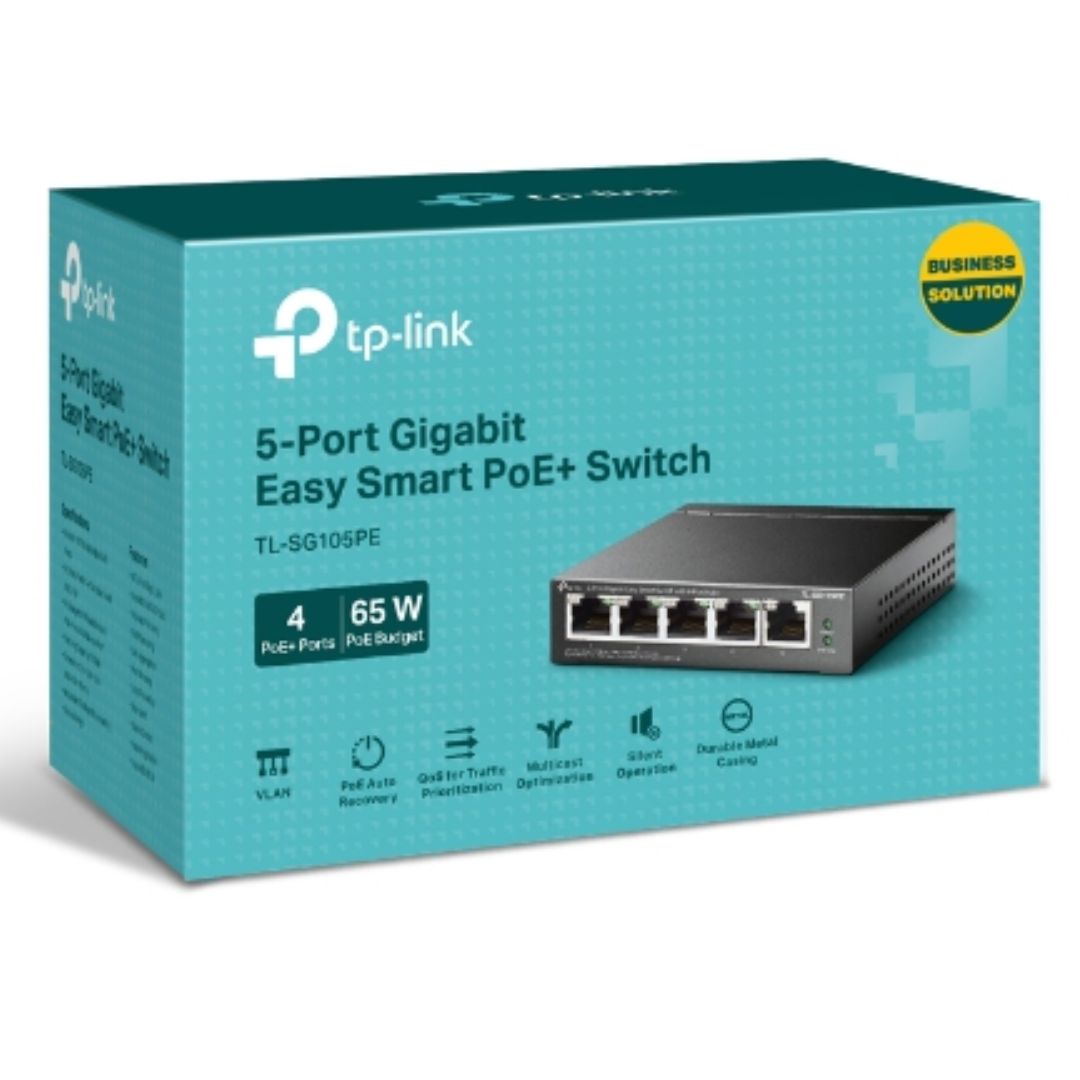

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For all PoE Ports, Up To 30W Each PoE Port
TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For all PoE Ports, Up To 30W Each PoE Port
Product details
Compare the listed ports, connection standards and management requirements for your network.
Quick comparison
- Ports: 5-Port
- Listed network standard or speed: Gigabit
- Product SKU: NWTL-SG105PE
Before you order
Confirm compatibility with your existing network, power or PoE requirements and any required licences or subscriptions. Plan configuration and deployment before ordering.
Buying for a Sydney business? Request a business quote for quantities, compatibility and deployment requirements.
Full product details
TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+
• — Five 10/100/1000Mbps RJ45 ports
• — Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
• — Supports PoE power up to 65 W for all PoE ports
• — Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• — Simple network set-up on top of plug-and-play connectivity
• — Web-based user interface and Easy Smart Configuration Utility simplify configuration
HARDWARE FEATURES
Standards and Protocols — IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface — Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media — 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity — Fanless
Power Supply — External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45) — Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Max Power Consumption — 4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation — 15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)
PERFORMANCE
Switching Capacity — 10 Gbps
Packet Forwarding Rate — 7.44 Mpps
MAC Address Table — 2 K
Packet Buffer Memory — 1.5 Mb
Jumbo Frame — 16 KB
SOFTWARE FEATURES
Quality of Service — Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features — IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN — Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management — Web-based GUI
